Thermotec Inverter Pro Horizontal Heat Pump Pool Heater with Wi-Fi for Swimming Pools or Koi Ponds 9kw to 24kw

Thermotec Inverter Pro Horizontal Heat Pump Pool Heater with Wi-Fi for Swimming Pools or Koi Ponds 9kW to 24kW

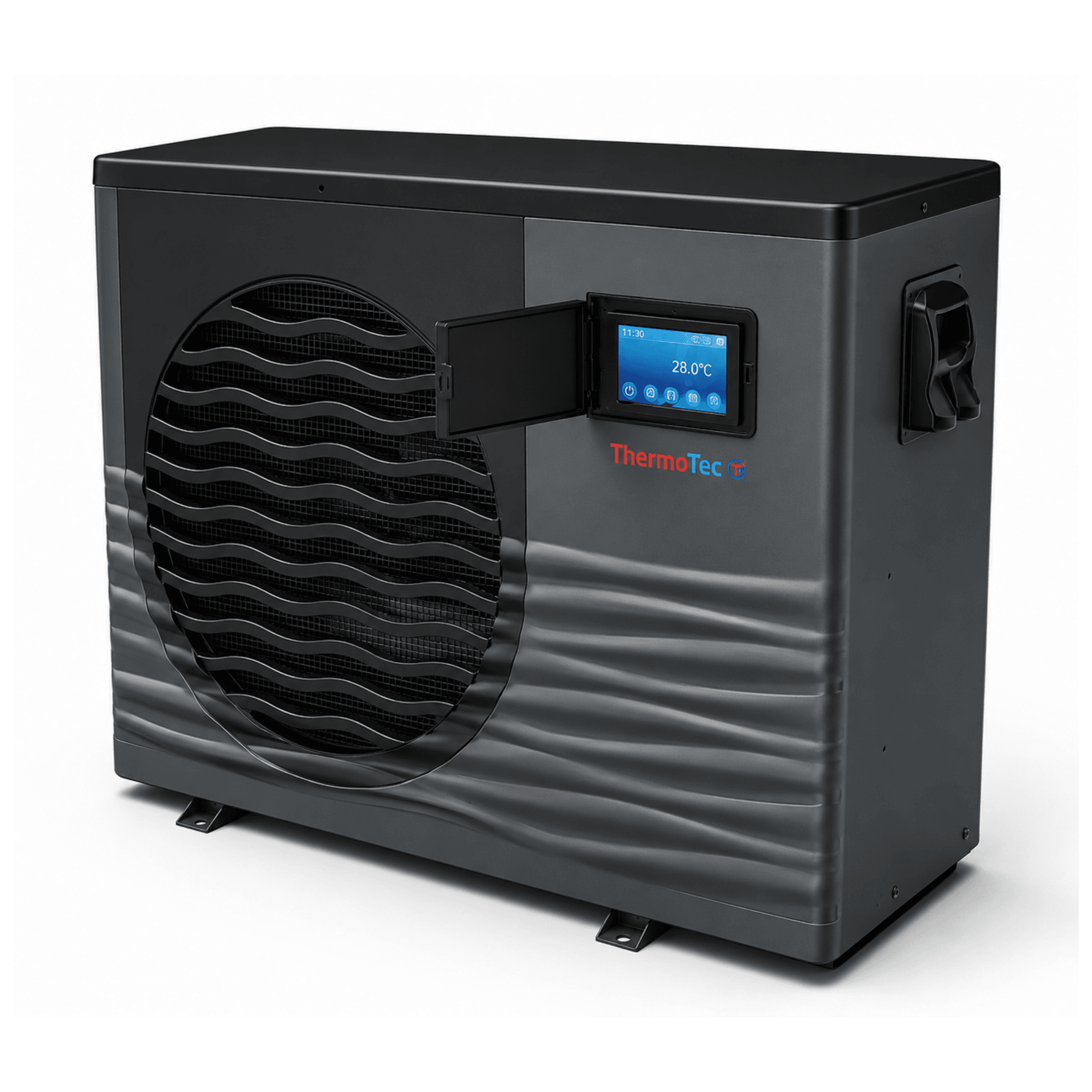

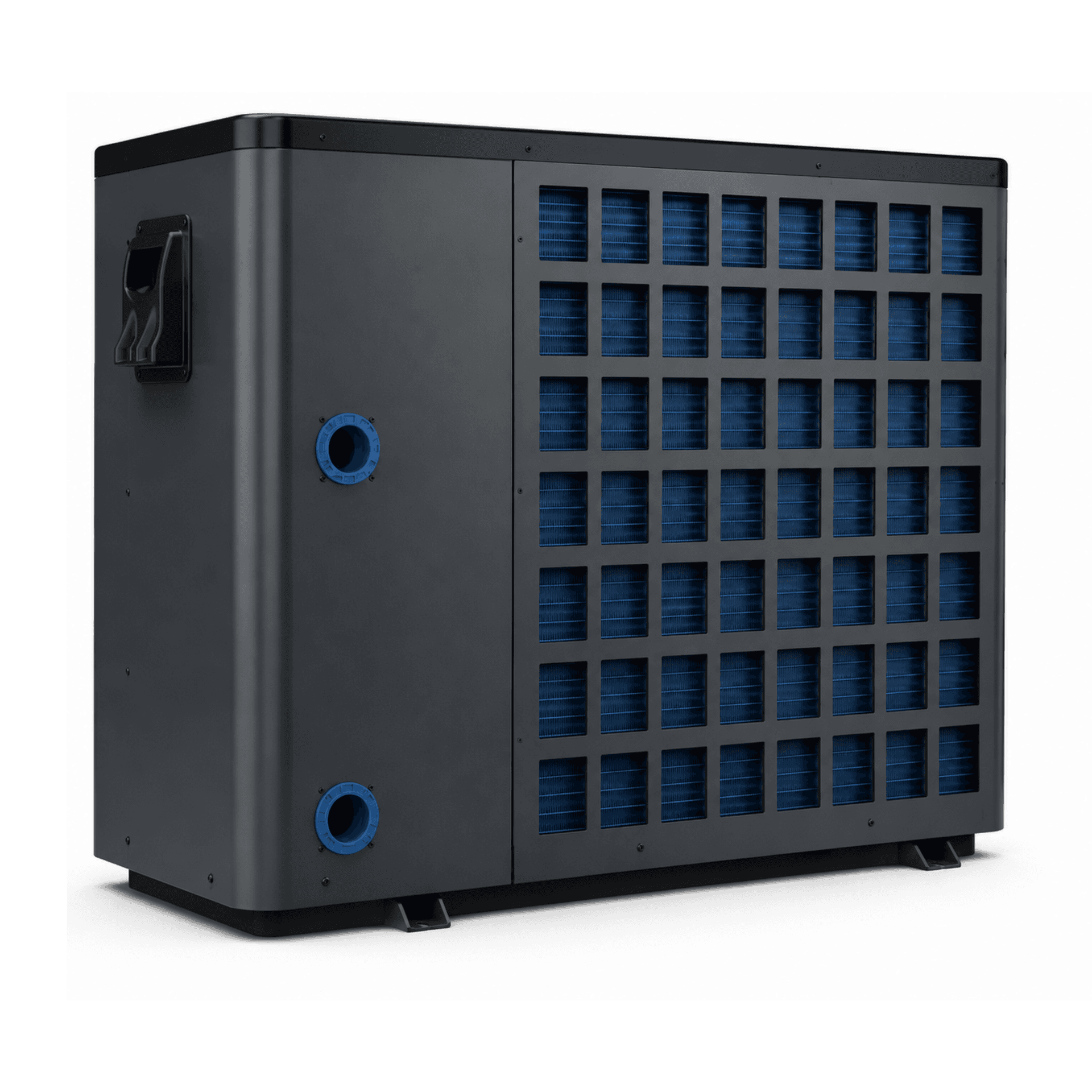

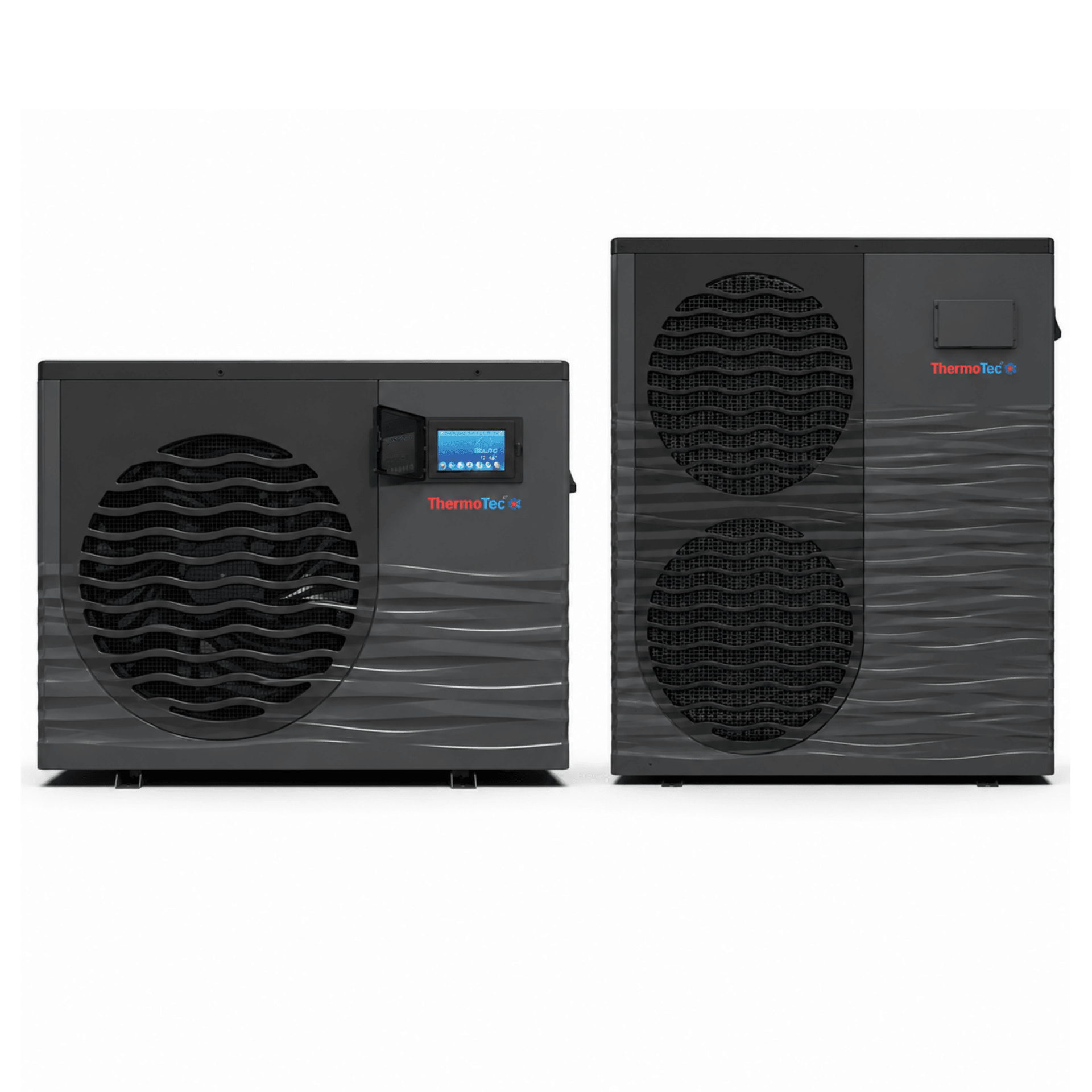

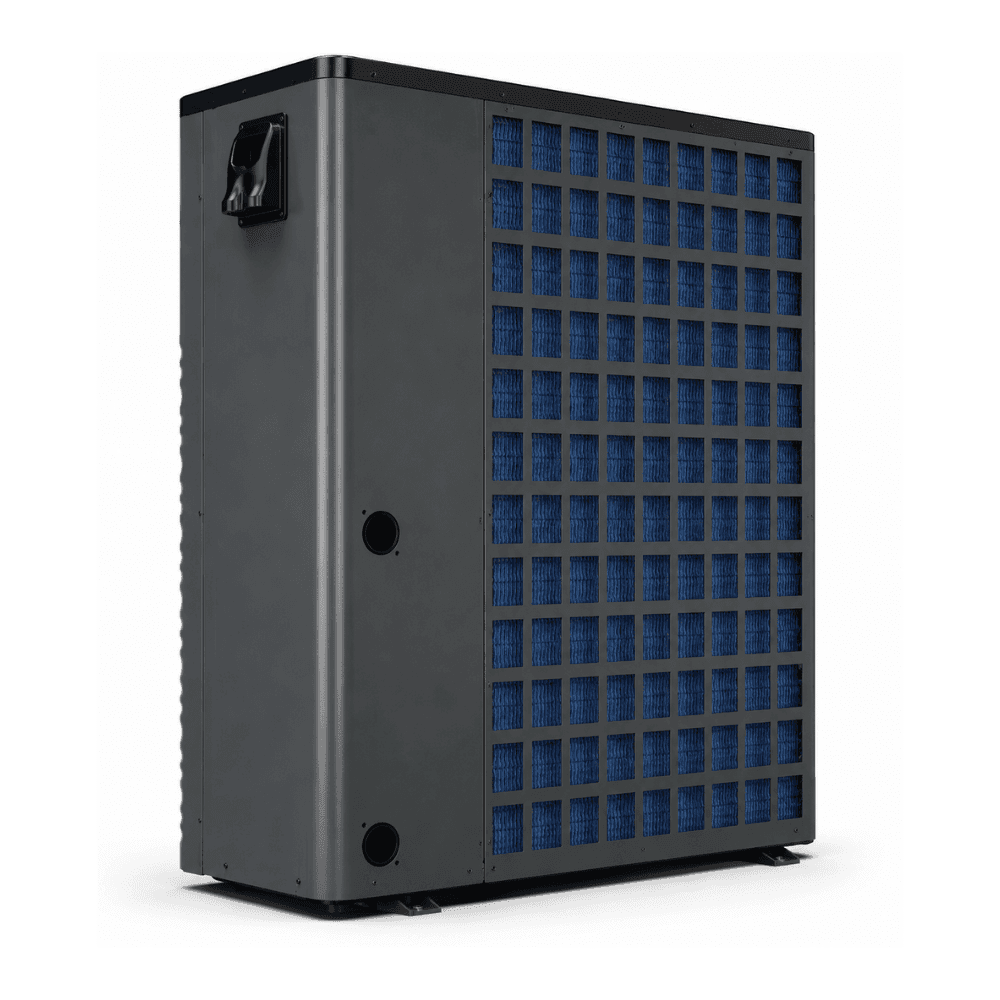

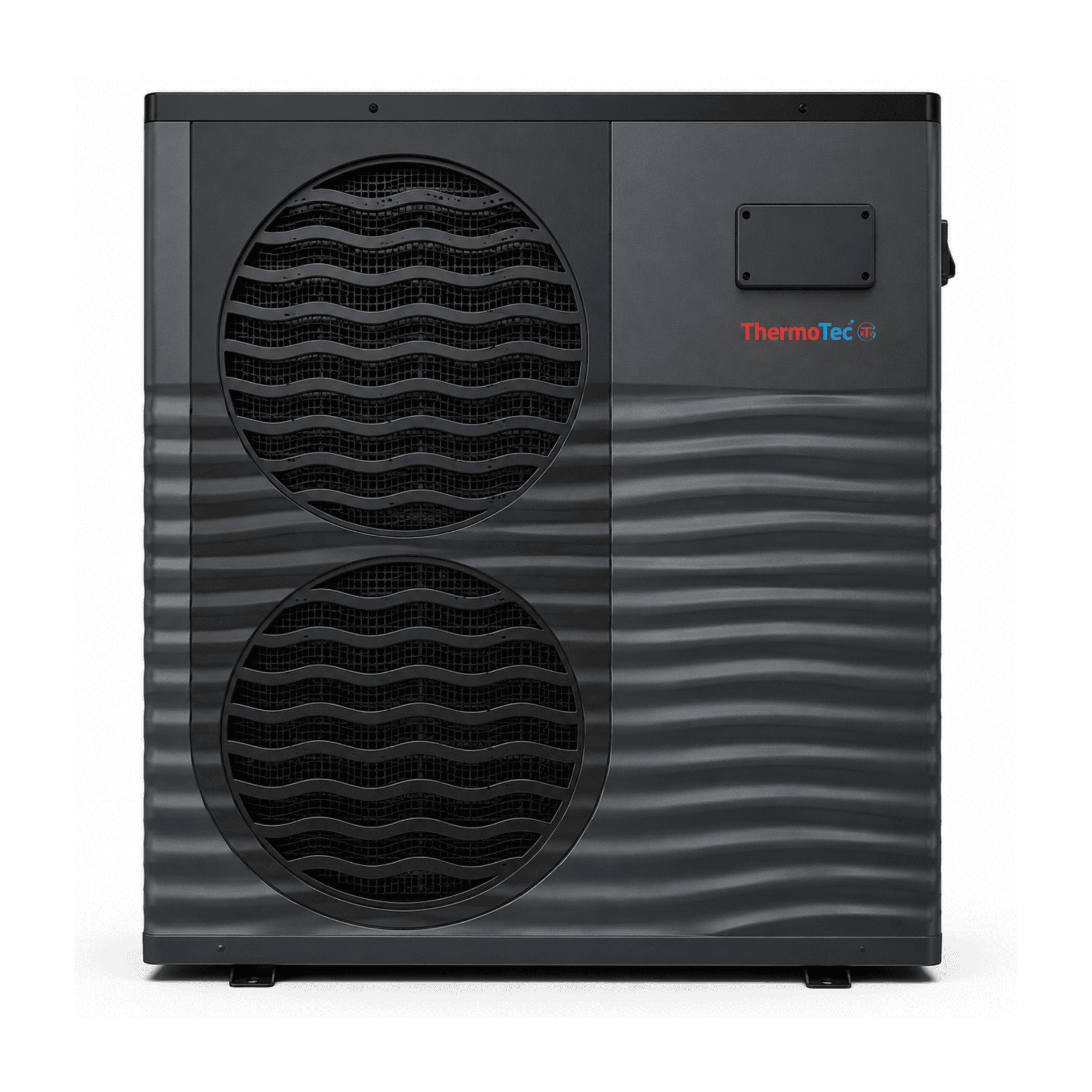

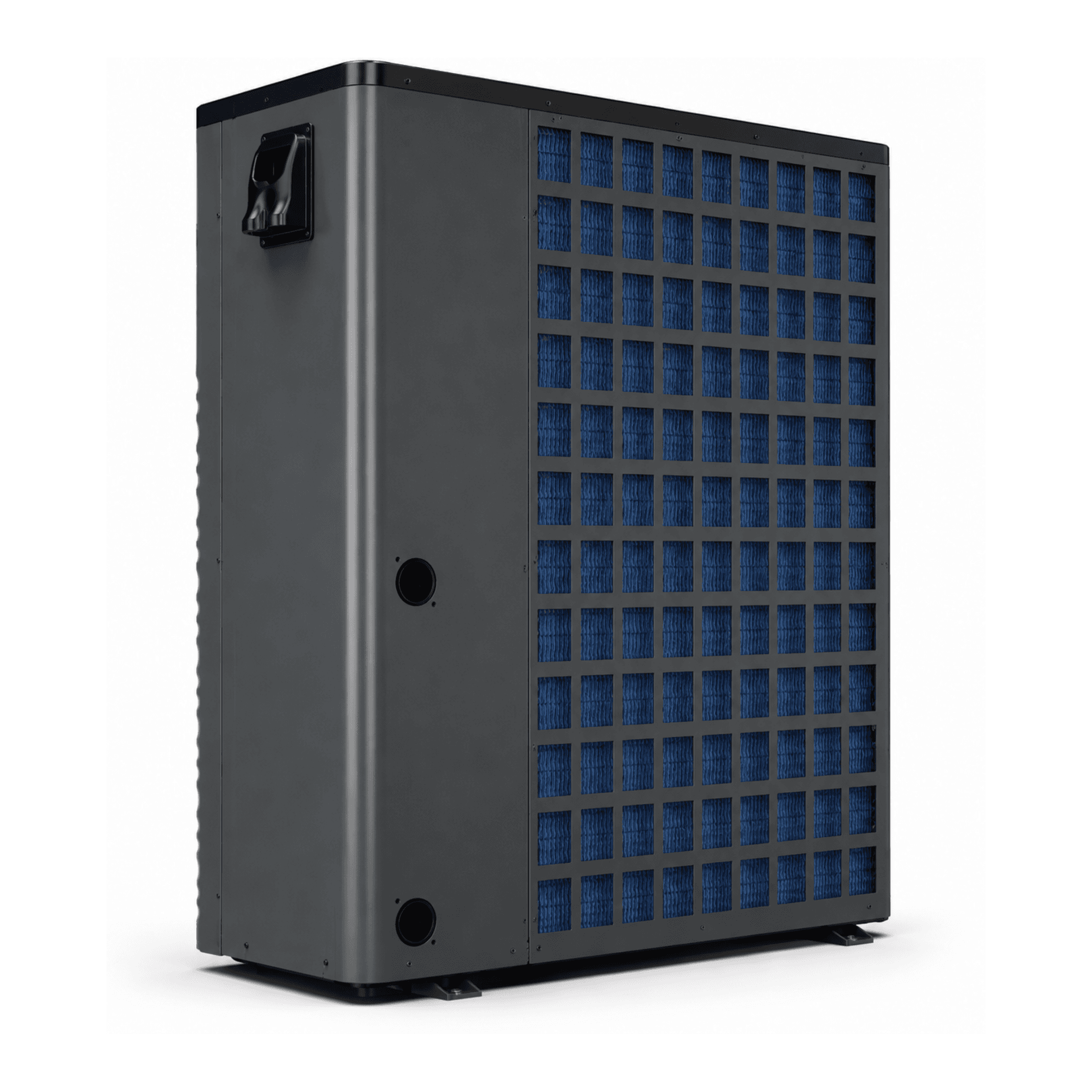

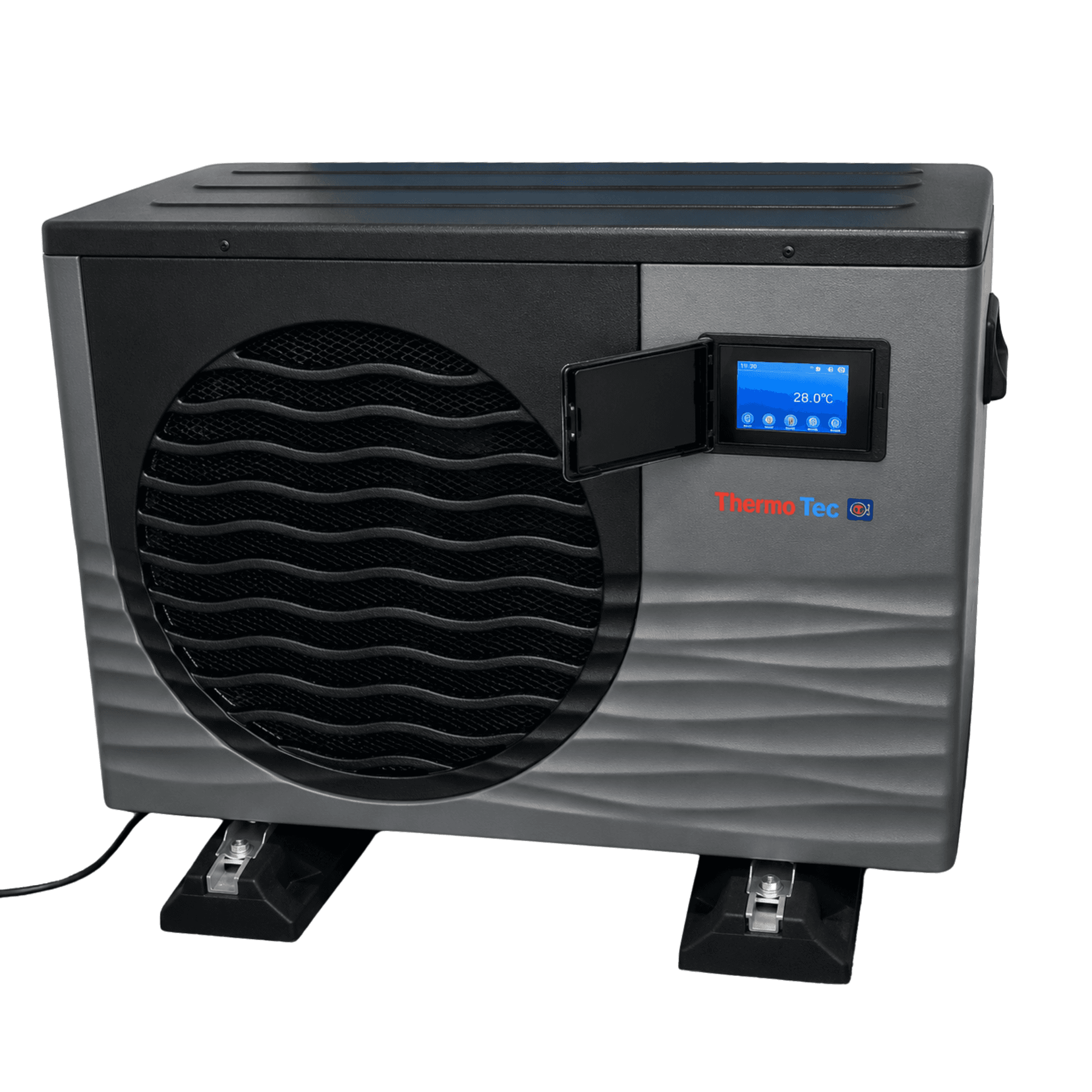

The Thermotec Inverter Pro Horizontal range is designed for swimming pools, koi ponds, swim spas and hot tubs, offering high efficiency, low noise and reliable year-round performance. Available in 9kW, 12kW, 17kW, 19.5kW and 24.2kW models, these fully inverter-driven heat pumps automatically adjust fan and compressor speed to match demand, reducing running costs and improving temperature stability.

With COPs of up to 13, they deliver excellent efficiency, while larger evaporators improve performance at low air temperatures. The range can heat and cool, operates in air temperatures down to -15°C, and is especially well suited to indoor pools and koi ponds used all year round.

Each unit includes a free Wi-Fi module for remote control and monitoring through the Aqua Temp app or web browser, plus a 5-inch colour touch screen control panel for easy operation. The Wi-Fi module also supports remote diagnostics and technical support where required.

Key Features

• Fully inverter driven with variable speed fan and compressor
• COPs of up to 13 for high efficiency and low running costs
• Available in 9kW, 12kW, 17kW, 19.5kW and 24.2kW models
• Single phase power supply (220V to 240V)

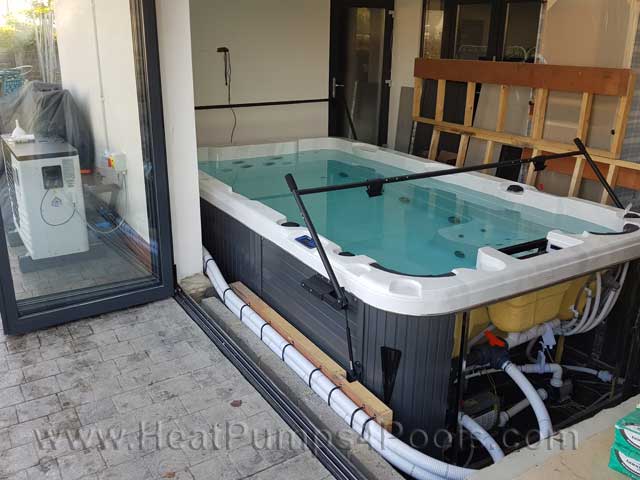

• Suitable for pools, koi ponds, swim spas and hot tubs
• Heating and cooling modes for year-round use
• Operates in air temperatures down to -15°C
• Water temperature adjustable from 10°C to 40°C in 0.1°C steps
• Koi pond temperature control accuracy down to +/- 0.5°C without a separate thermostat
• 5-inch colour touch screen display
• Built-in timer and water flow switch
• Soft start for reduced electrical start-up demand
• Mitsubishi variable speed inverter compressor
• Brushless DC fan motor for quiet, efficient operation
• Lockable control panel
• Automatic hot gas defrost
• Titanium heat exchanger for chlorine and saltwater pools
• Corrosion-resistant case
• R32 refrigerant on all models except the 34kW single phase model, which uses R410a
• Free Wi-Fi module included

Wi-Fi & Controls

The supplied Wi-Fi module allows remote control and monitoring using the Aqua Temp app or a web browser. Functions include on/off control, temperature adjustment, timer settings, mode selection, silence mode, history graphs, weather information, and fault code display.

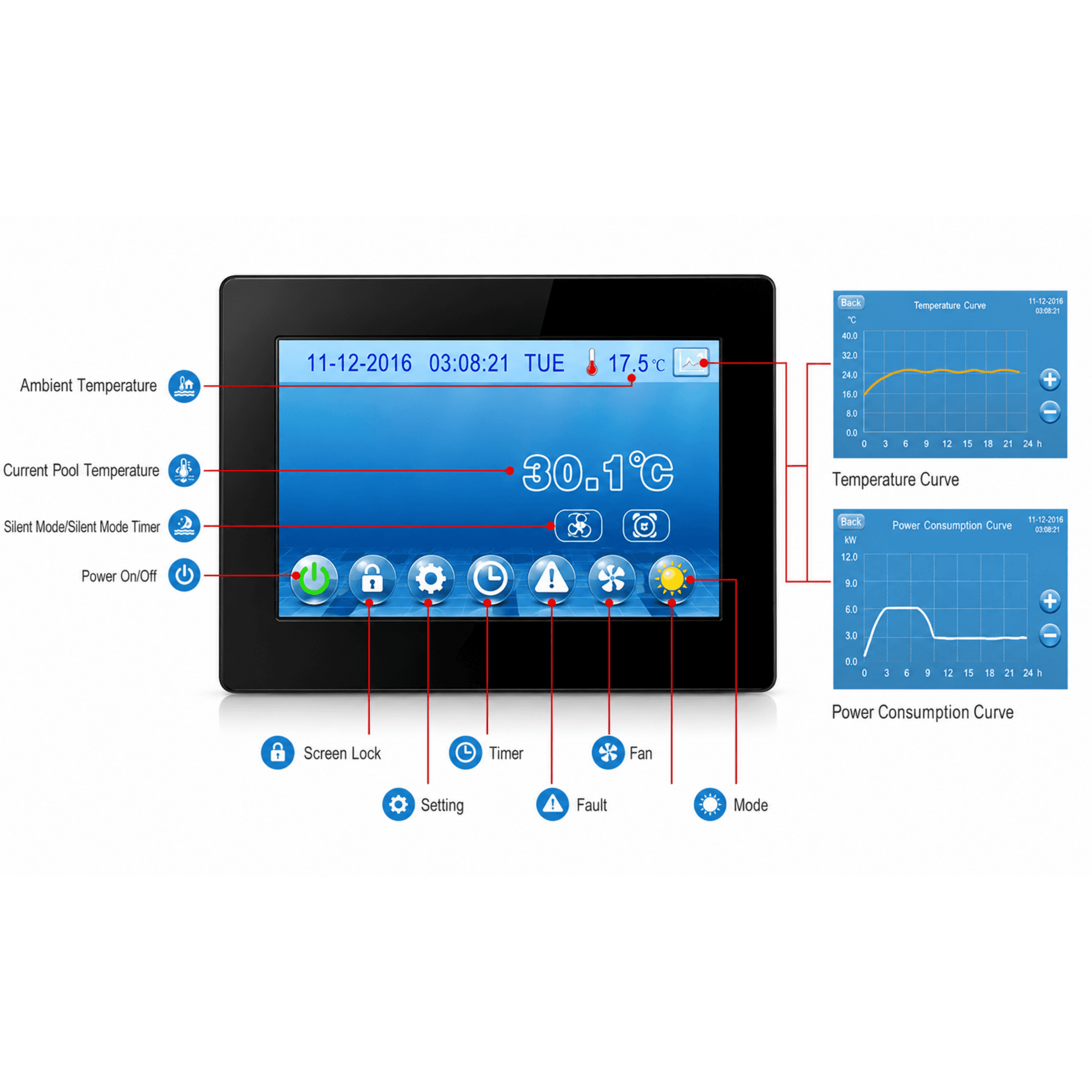

The 5-inch backlit colour touch screen shows water temperature, operating mode, timer status, fan operation, time, date, ambient temperature, fault codes, pool temperature history and power consumption graphs.

What’s Included

• Free Wi-Fi module
• 2 x water connection unions with 50mm glue socket outlets

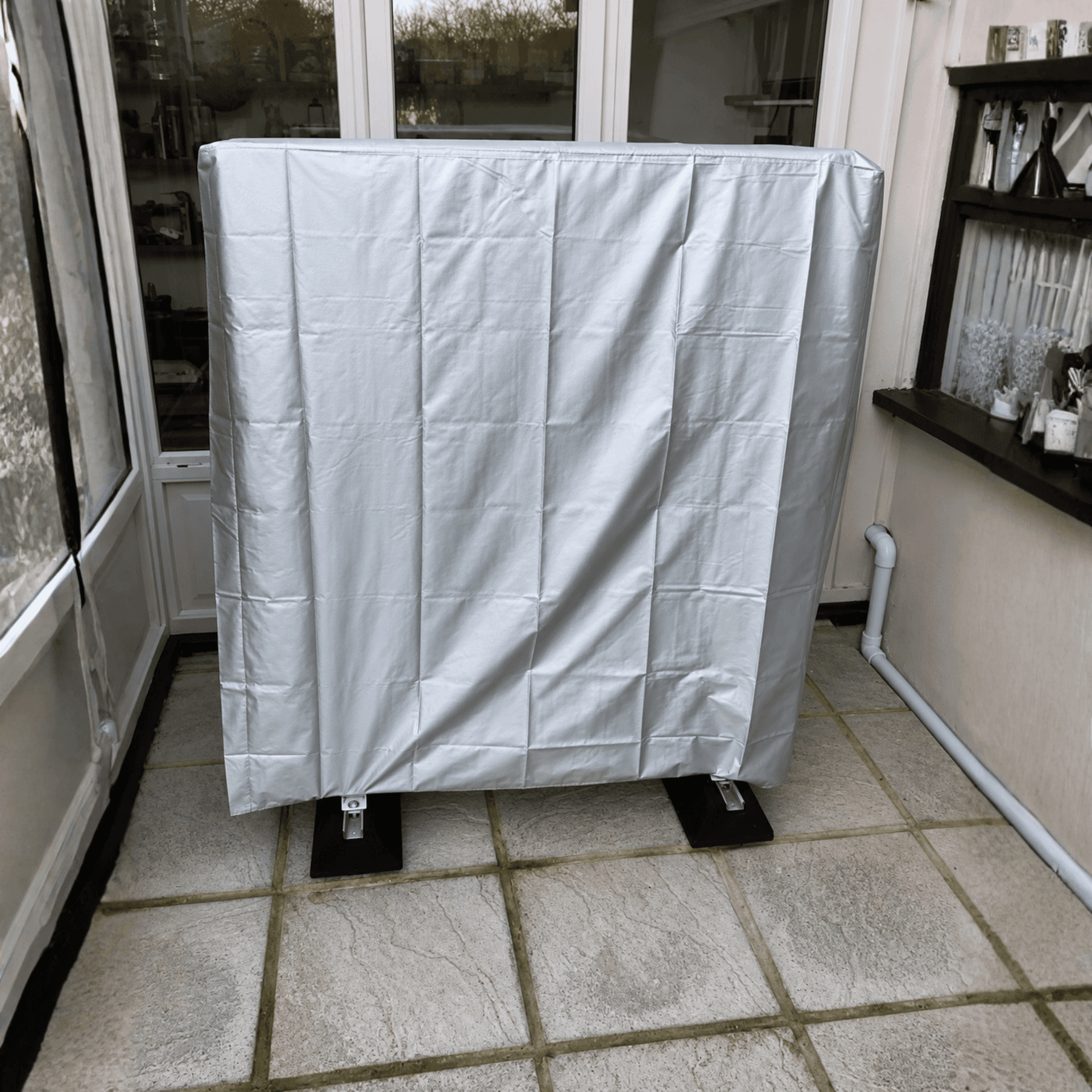

• 1 x basic winter cover
• 4 x rubber mounting feet
• Condensate drain hoses and drain spouts

Sizing Guide for Covered Swimming Pools

Model	Output	Recommended Max Pool Volume	Absolute Max Pool Volume
9kW	9kW	30m³	45m³
12kW	12kW	40m³	60m³
17kW	17kW	50m³	75m³
19.5kW	19.5kW	65m³	95m³
24.2kW	24.2kW	75m³	120m³

Koi Pond Sizing Guide

Model	Max Pond Volume
9kW	4500 gallons
12kW	6000 gallons
17kW	7500 gallons
19.5kW	9600 gallons
24.2kW	11,600 gallons

Sizing assumes the pool or pond is covered to reduce heat loss and improve efficiency. For koi ponds, sizing assumes winter use at around 12°C with the pond covered.

Optional Extras

• 3G/4G mobile data module
• Heavy duty mounting feet
• Bypass kit
• Heavy duty winter cover
• Remote display kit

Important Notes

• A Wi-Fi signal is required at the heat pump location for the supplied Wi-Fi module
• If Wi-Fi is unavailable, a 3G/4G module or signal extension solution may be needed
• For koi ponds, a backup heater is recommended in very cold weather
• A minimum pond water temperature of +8°C is required for start-up
• A bypass is recommended to allow winter draining

Warranty & Delivery

• 3-year parts and labour warranty on all components
• 5-year warranty on compressor and heat exchanger (parts only after year 3)
• Free UK delivery
• Typical UK delivery time: 1 to 3 days
• International shipping available on request
