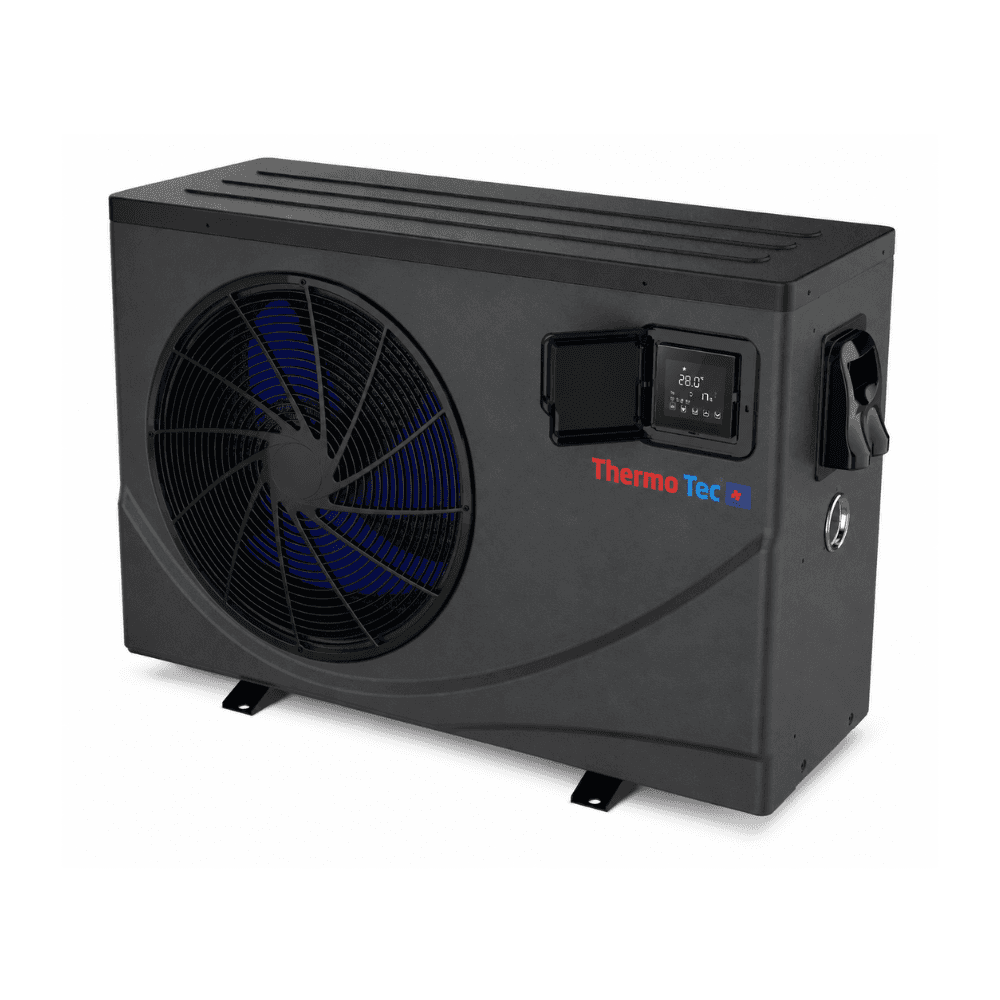

Thermotec Neo Inverter Heat Pump with Wi-Fi Horizontal Swimming Pool Heater 5kw to 24kw Extended Season Use

Thermotec Neo Inverter Heat Pumps with Wi-Fi for Swimming Pools 5kw to 24kw Extended Season Use

1. Description

The Thermotec Neo Inverter range of pool heat pumps offer an excellent inverter driven heat pump at a low cost with high value for money. HeatPumps4Pools are the leading specialist supplier of swimming pool heat pumps. We have many years of experience in the market and have used our expertise to research and design our own range of Thermotec swimming pool heat pumps.

The Thermotec Neo Inverter range are fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool. Both the fan and compressor automatically adjust their speed to match the pool heat demand, therefore once the pool is up to temperature, the unit can operate with reduced power consumption and noise.

The ability to adjust the output of the pool heat pump allows the Thermotec Neo Inverter to deliver greatly reduced running costs with COPs of up to 10. This means that for every 1kw of electricity used by the heat pump, 10kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market. The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw).

In addition the inverter technology has a reduced electrical startup requirement, making them ideal for properties with a sensitive or limited electrical supply. The Thermotec Neo Inverter can out-perform traditional on/off type heat pumps as well as many other inverter driven models.

Even as the outside air temperature falls, the Thermotec Neo Inverter will still perform well, delivering heat to your pool.

The Thermotec Neo Inverter heat pumps can work well with outside air temperatures as low as -7c

For koi ponds, we recommend using the Thermotec Inverter Pro models due to higher heat output in cold weather, however the Thermotec Neo range can be used for koi ponds if used in conjunction with an electric backup heater. The electric heater can provide additional heat in very cold weather.

The Thermotec Neo Inverter range work very silently thanks to a unique internal ventilation system and the inverter technology.

The wifi module:

Is included FREE OF CHARGE with the Thermotec Neo models

Once this module is connected, it allows control and monitoring of the heat pump using the Aqua Temp app

it also allows us to provide remote support if required

You can see details of the Wifi module HERE

2. Features

• Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with maximum heat output
• High efficiency with COPs of up to 10. This means that for every 1kw of electricity used by the heat pump, up to 10kw of heat is returned to the pool.
• Equipped with an easy to use black and white touch screen display / control panel.
• Brushless variable speed DC fan motor – very efficient with extremely quiet operation
• Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
• Eight different models: 5kw, 7kw, 9kw, 11.5kw, 13.2kw 15.5kw, 18.4kw, 24kw
• All models use single phase power (ie 220v to 240v)
• Can provide heating and cooling of pool water
• Recommend for for pools, swim spas, hot tubs for extended season use (ie April-October)
• Suitable for in-ground or above ground pools
• Soft start with reduced electrical startup requirements for properties with sensitive or limited power supplies
• Low noise, variable speed fan.
• Corrosion resistant case
• Microprocessor controlled
• Automatic hot gas defrosting.
• Built in timer and clock
• Set Temperatures for this model are from 10-43 degrees
• Silent mode
• Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
• Operates in air temperatures as low as -7 °C.
• 2 x Water connection unions with 50mm glue socket outlets.
• 4 x Rubber mounting feet.
• 2-Year parts and labour warranty

The Neo Inverter 5kw, 7kw, 9kw and 12kw can be run from a standard 13A UK Plug, larger models need to be hardwired as they can exceed 13A. The 5kw, 7kw, 9kw and 12kw come with a free 3m plug and play cable kit. This is a heavy duty piece of round flex cable with a 13A UK plug on the end.



For above ground pools, you can also use one of our pre-made Connection Kits. These allow the Intex type hoses with grey nuts to be connected to the heat pump.

Please call us if you are unsure which fittings you need.

3. Sizing & Models

The sizing guide for a covered pool is:-

Model	Kw	Above Ground Pool Max Pool Volume	In ground PoolMax Pool Volume	In GroundAbsolute Max Pool Volume
Thermotec Neo Inverter Horizontal	5.4kw	13m3	20m3	28m3
Thermotec Neo Inverter Horizontal	7kw	18m3	25m3	35m3
Thermotec Neo Inverter Horizontal	9kw	25m3	30m3	50m3
Thermotec Neo Inverter Horizontal	11.5kw	35m3	40m3	60m3
Thermotec Neo Inverter Horizontal	13.2kw	40m3	45m3	65m3
Thermotec Neo Inverter Horizontal	15.5kw	45m3	50m3	75m3
Thermotec Neo Inverter Horizontal	18.4kw	55m3	70m3	95m3
Thermotec Neo Inverter Horizontal	24kw	70m3	85m3	110m3

For a koi pond that is heated all year round with a winter temperature of around 12c and a summer temperature of around 20-22c, we recommend the following sizing:-

Pond Sizing Guide

Model	Max Pond Volume
Thermotec Neo Inverter 5.4kw	2200 gallons
Thermotec Neo Inverter 7kw	2600 gallons
Thermotec Neo Inverter 9kw	2800 gallons
Thermotec Neo Inverter 11.5kw	3400 gallons

(Note: This assumes that the pond is covered in winter and that a temperature of +12c is to be maintained over winter)

Note: If the Thermotec Neo heat pumps are used on a koi pond over winter then an electric backup heater should be installed to provide additional heat in cold weather

For koi ponds, we recommend using the Thermotec Inverter Pro models due to higher heat output in cold weather, however the Thermotec Neo range can be used for koi ponds if used in conjunction with an electric backup heater. The electric heater can provide additional heat in very cold weather.

For more information on using a heat pump on a koi pond, please see our Koi Pond Heating Guide page.

All pools and ponds should be covered to prevent heat loss and save on running costs by preserving the heat in the water.

Pools should be covered with either a solar cover (outside) or a Thermal Blanket (indoor pools) for approx 20 hours a day to maximise the savings from energy wasted by heat loss from the surface of the pool water.

For outside pools the solar covers absorb energy which is passed to the pool through conduction, while the transmission properties of the bubble layer allows for Infrared Radiation (IR) wavelengths to pass through the material and be directly absorbed by the water. The material provides a barrier to evaporation, giving the pool the ability to preserve water and reduce heat loss through evaporative cooling. Prevention of evaporative losses has the largest impact on maintaining a pool’s temperature, responsible for 70% of the heat loss from the pool. EnergyGuard Selective Transmission has been tested to prevent over 98% of evaporative losses.

4. Specifications

Model	Max Current	Breaker Size	Runs from 13A UK Plug?	Min Cable Size mm2
5.4kw	6.8A	13A	Yes	1.5mm2
7kw	6.8A	13A	Yes	1.5mm2
9kw	9.9A	13A	Yes	1.5mm2
11.5kw	11.5A	13A	Yes	2.5mm2
13.2kw	10.5A	13A	Yes	2.5mm2
15.5kw	14.92A	16A Type C	No	2.5mm2
18.4kw	15.72A	16A Type C	No	2.5mm2
24kw	22.5A	25A Type C	No	4mm2

The Thermotec Neo Inverter display will show:-

• The current pool water temperature
• The mode (e.g. heating or cooling)
• Clock/time
• If the timer function has been set
• If the fan is operating
• The current time and date
• The outside ambient temperature
• If there is a fault, a fault code is displayed to explain the problem
• There is a protective flap over the display to protect it from the weather and UV rays from the sun
• Inlet water temperature
• Outlet water temperature

Please click on the Specifications tab to see the product specifications.

5. Optional Extras

Designed & Built For Long Life & Reliability

2 x 50mm to 1.5″ Adaptors plus Glue		Note: These heat pumps come with 50mm Unions for the use with 1.5″ Solid pipework – with this you will need to purchase 2 x 50mm to 1.5″ Adaptors plus a bottle of glue as listed on the optional extras.
Threaded 1.5″ Hosetails plus Jubliee Clips		For above ground pools please choose 2 x 1.5″ Threaded Hosetail’s and 2 x Jubliee clips which are available on the listing as an optional extra. This will allow you to connect 32mm/38mm flexi hose.

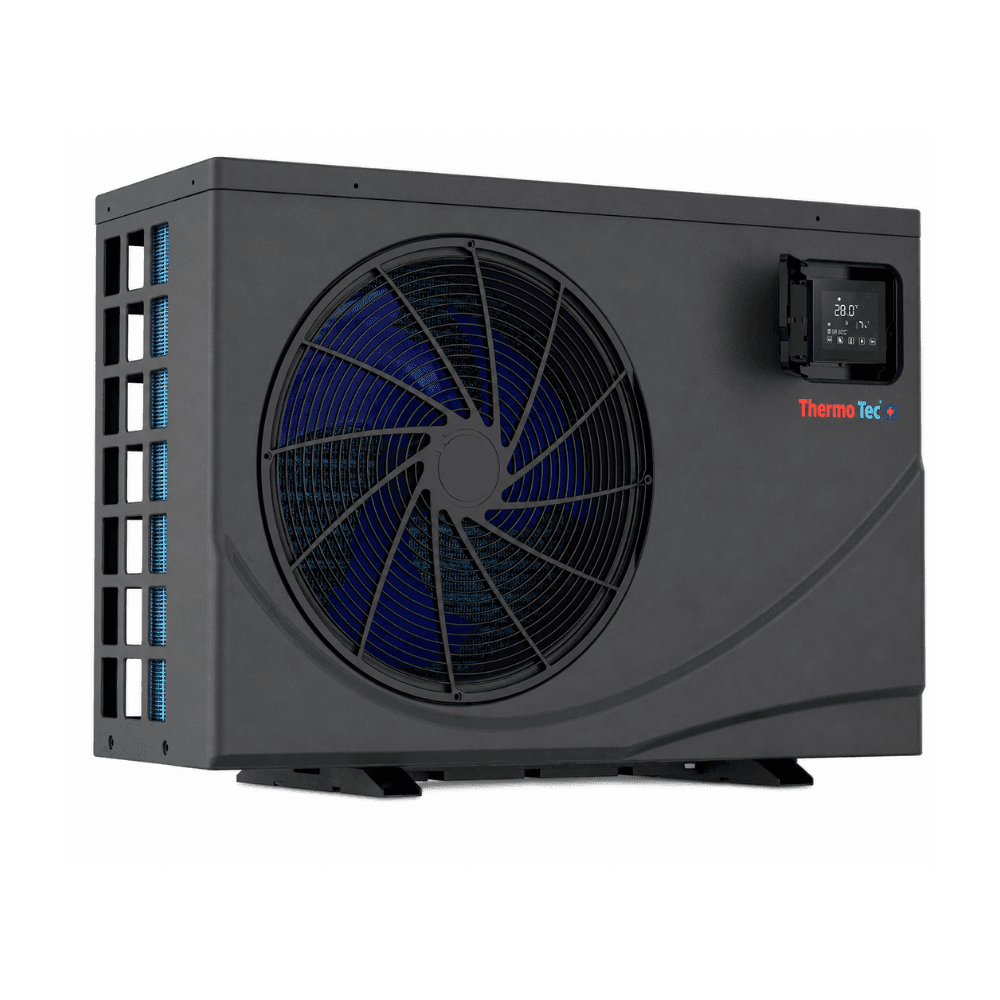

Heavy Duty Mounting Feet		These heat pumps come with rubber mounting feet (see photo above). Alternatively you can purchase these heavy duty Mounting Feet. These raise the unit off the ground by approximately 100mm, and also help to reduce vibration. Please see our Mounting Feet and Slabs section for more information.
Bypass Kit		Please see our Bypass Kits section section for more information.
Winter Cover		We offer a heavy duty cover which will give you added and extended protection against the winter weather Please see our Winter Cover section section for more information.
Plug and Play Cable Kit		Note: these heat pumps do not come with a power cable or plug. They require a heavy duty piece of round flex cable with a plug on the end. Please purchase the plug and play cable kit to make these into a plug and play unit, this allows the heat pump to be plugged into a standard 13A outdoor socket Please see our Plug & Play Cable Kit section for more information.

Or For above ground pools, you can also use one of our pre-made Connection Kits. These allow the Intex type hoses with grey nuts to be connected to the heat pump.

6. Product Literature

Please click the links below to download pdf brochures for these products

Thermotec Neo Inverter Horizontal User Manual
Thermotec Neo Inverter Wifi Manual – V3

Please also see the Literature tab at the top of the page for the Brochure and User Manual downloads.

7. Warranty & Support

The Thermotec Neo Inverter heat pumps come with a 2-year warranty on all components and 5-year warranty on the compressor and heat exchanger:-

• 2-year parts and labour warranty on all components
• 5-year warranty on the compressor and heat exchanger
• Europe and Outside the UK: Warranty is parts only warranty or return to us in the UK (customer pays transport cost). If spare parts are required, they will be sent free of charge to a UK address. If they are to be shipped outside the UK, the customer pays the international shipping cost

We recommend that you retain the pallet and packaging that the heat pump was delivered with in case you need to return the unit to us for repairs under the warranty.

The warranty will not apply where the heat pump has been installed incorrectly, or has been damaged by freezing

We are happy to provide technical support for all Thermotec Inverter swimming pool heat pumps that we supply.

We hold spare parts to support all Thermotec Neo Inverter heat pumps both during and after the warranty period.

8. Delivery

The range of Thermotec Neo Inverter pool heat pumps can be shipped to any UK address on a 3 day delivery service when in stock. Please check the listing above to see if the model you require is in stock.

The price includes FREE UK delivery.

We can ship the Thermotec Neo Inverter heat pumps to any country. Please contact us for a shipping quote.

9. Installation

Installation is straightforward. We can provide advice on installing your heat pump. We can also offer an installation service if required.

We recommend that a bypass is installed to allow the heat pump to be drained in winter if not in use. We sell bypass kits if required.

Please see our Installation Tips pages for information on how to install your heat pump. Our Photo Gallery also has photograph examples of pool heat pump installations and please also see the FAQ pages for more information

Please contact us for further advice
