Thermotec Mini Heat Pump 4kw and 5kw UK Plug and Play Pool Heater for Above Ground Pools

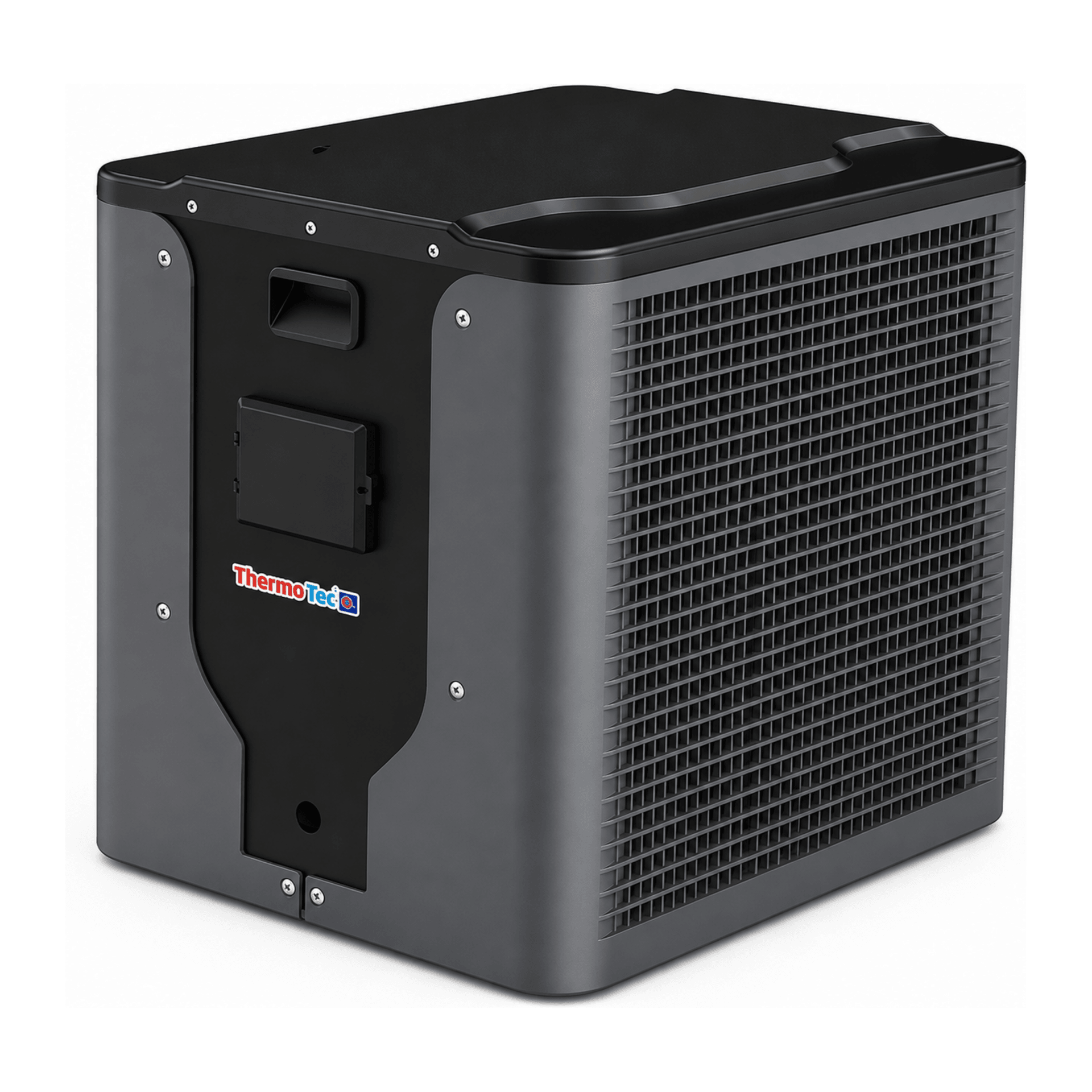

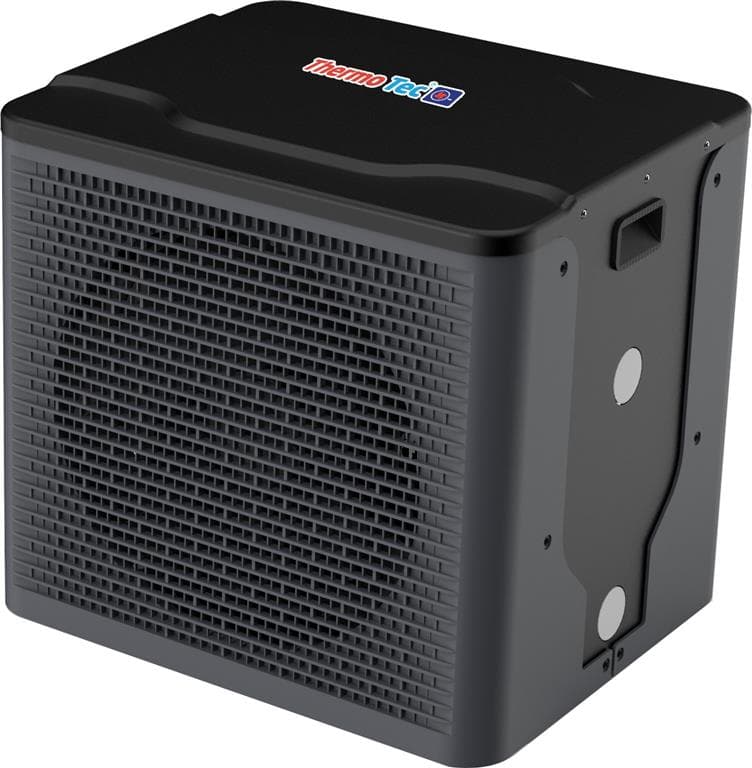

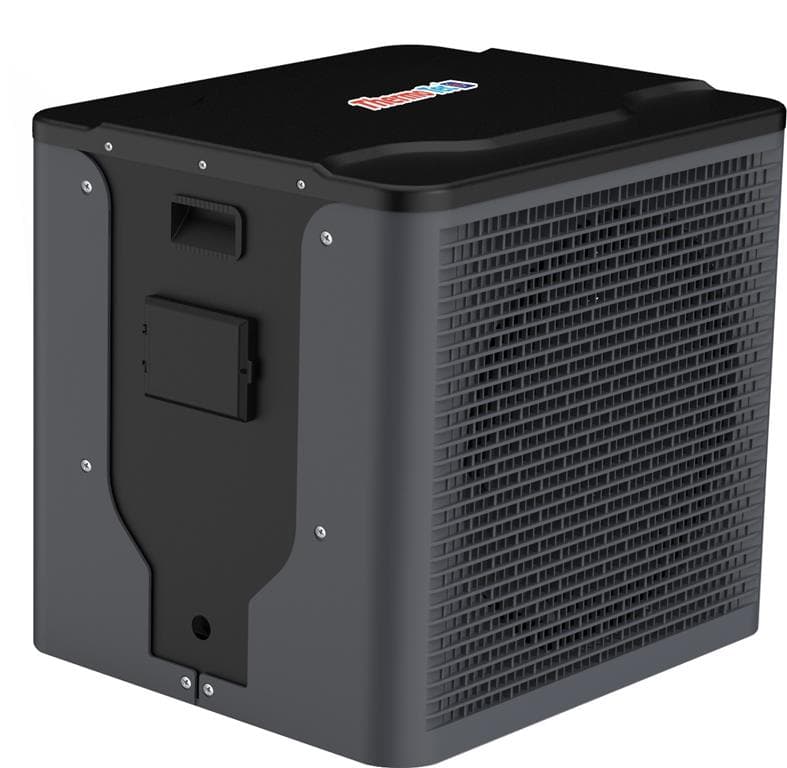

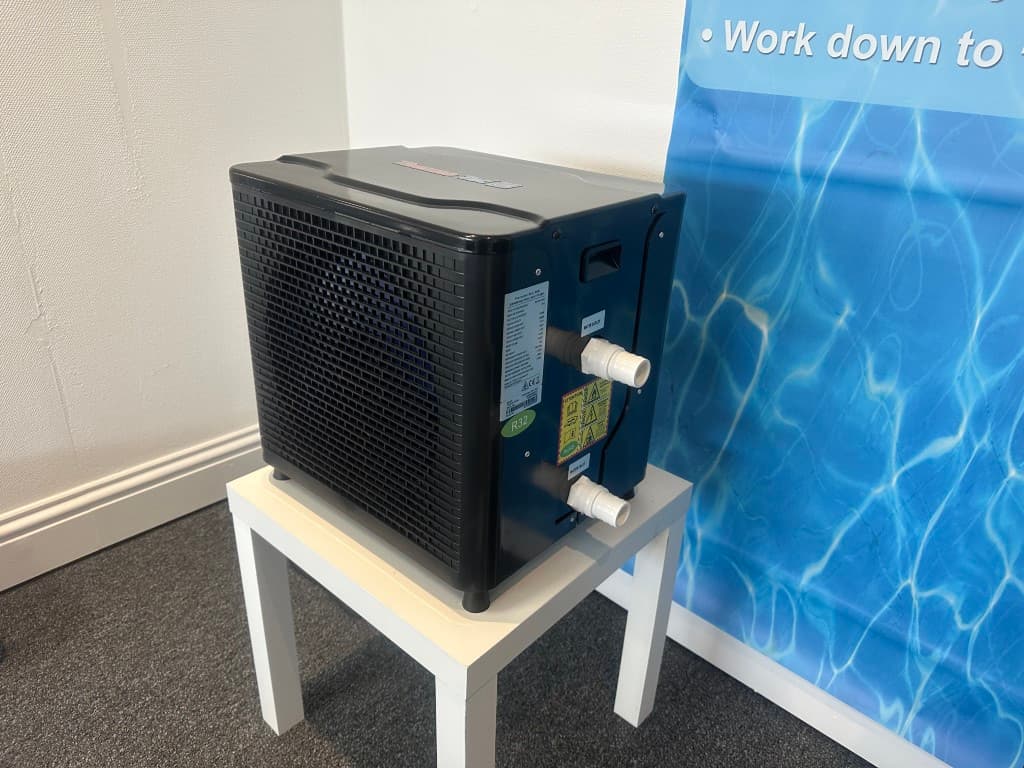

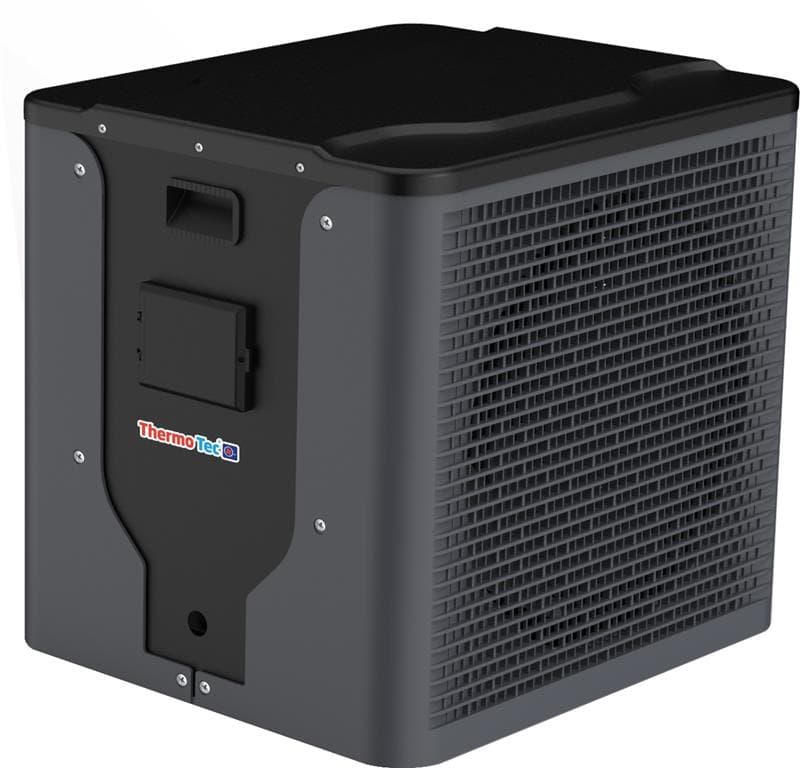

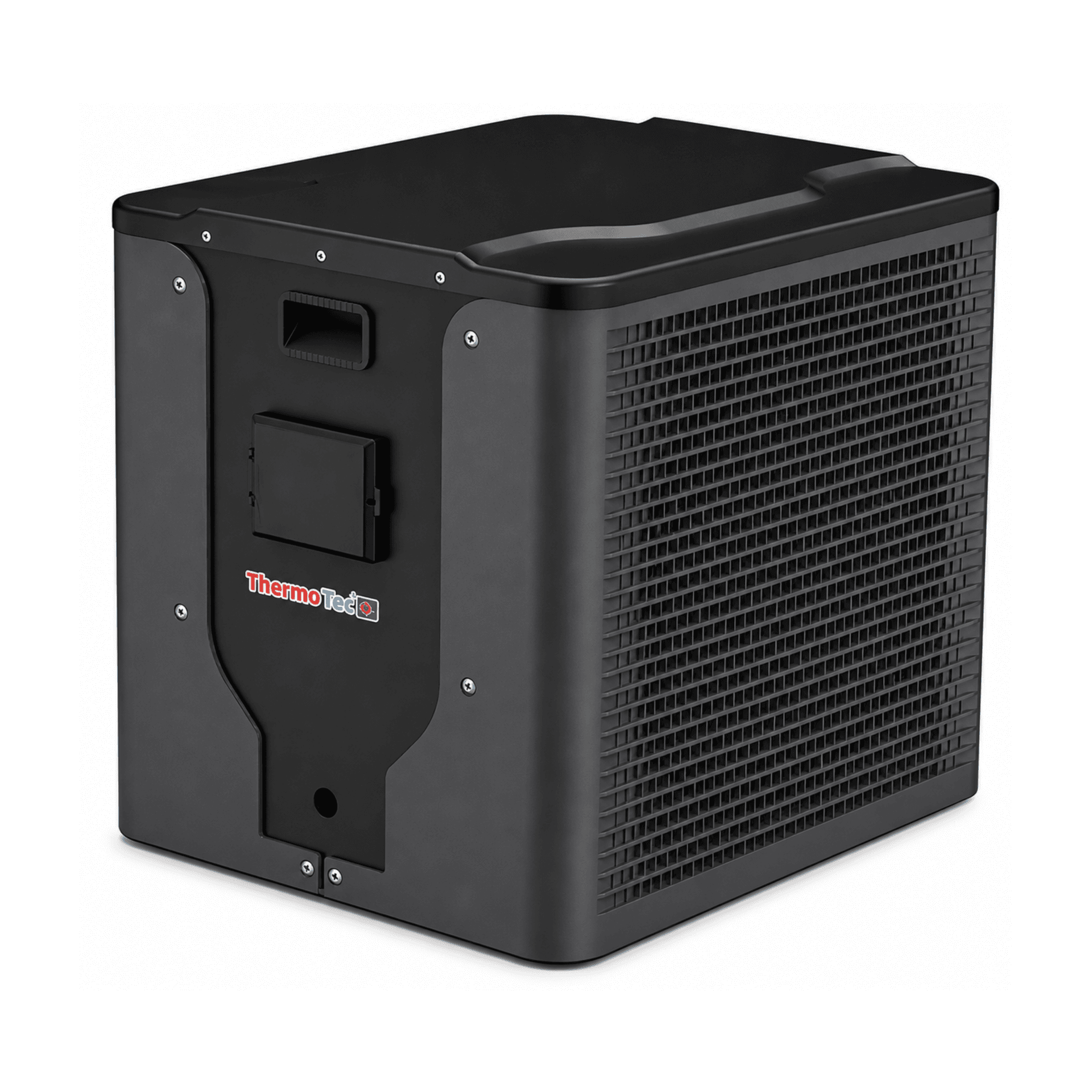

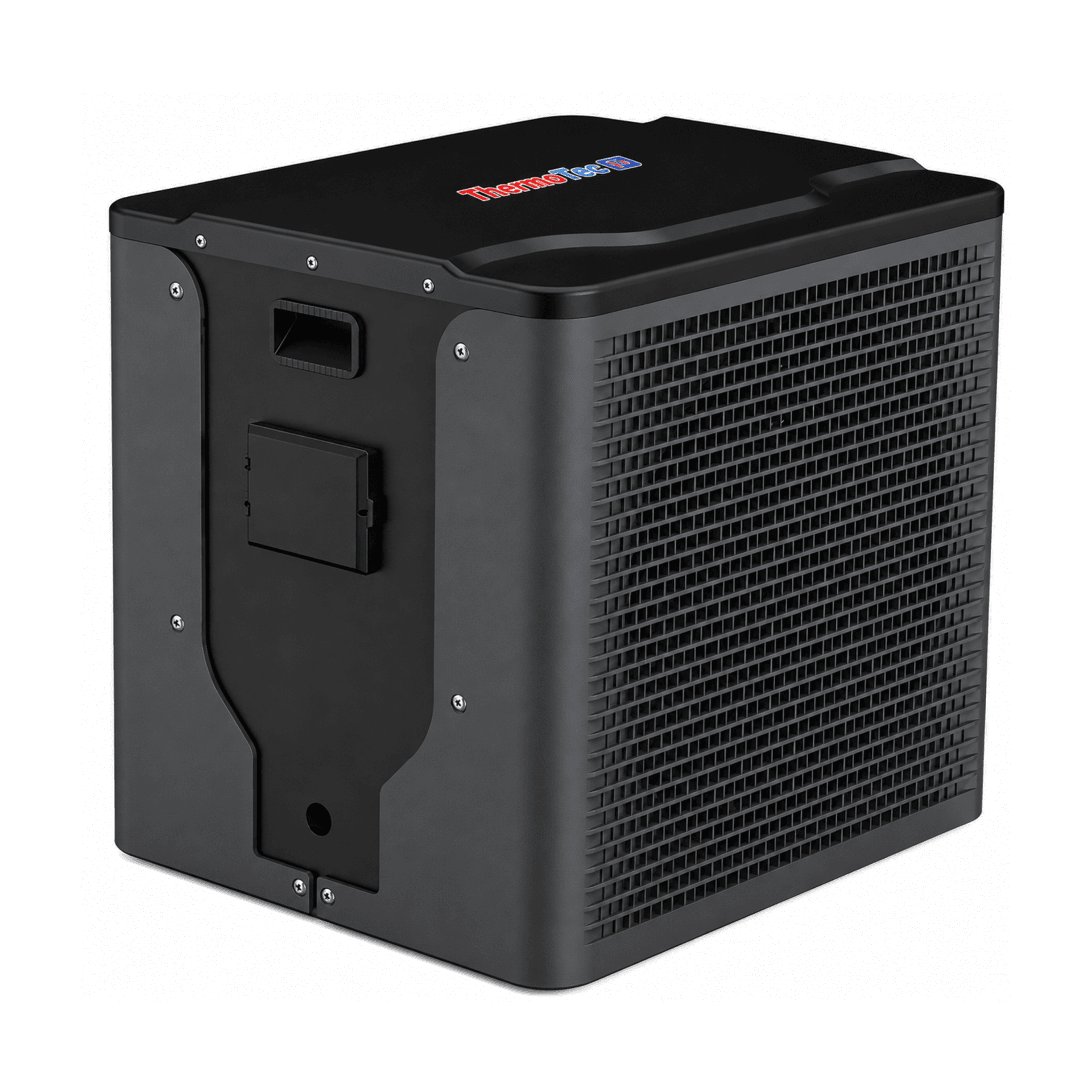

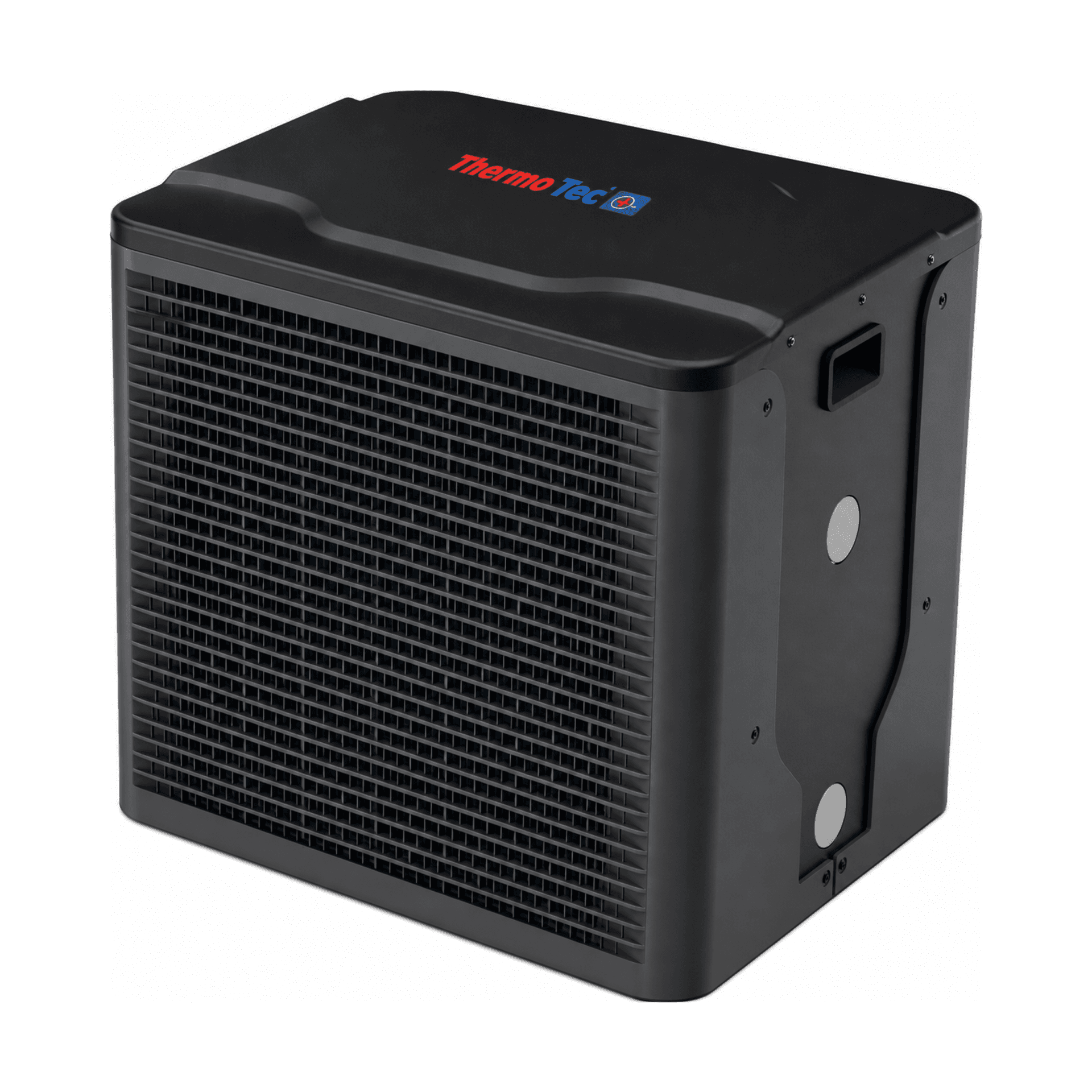

Thermotec Mini 4kW & 5kW Plug & Play Pool Heat Pump

The Thermotec Mini 4kW and 5kW heat pumps are compact, energy-efficient units designed for small above-ground pools. Ideal for use from May to September, they provide a simple, low-cost heating solution for pools up to 8–10m³ (with a solar cover).

Delivering up to 5kW of heat from just 0.98kW of electricity, they offer a highly efficient alternative to electric heaters—cutting running costs to less than a quarter of a standard 5kW electric heater.

Fully plug-and-play, the unit runs from a standard 13A socket and includes a UK plug, RCD, and 4m power cable for quick installation.

Key Features

• Outputs up to 4kW / 5kW of heat using only ~0.98kW electricity
• Suitable for pools up to:
  • 8m³ (4kW model)
  • 10m³ (5kW model) (with solar cover)
• Operates in air temperatures down to -7°C (reduced output in colder conditions)
• Plug & play – no bypass required
• Built-in water flow switch for safe automatic operation
• LED control panel (3-button), temperature range 15–43°C
• Bluetooth app control via Aqua Temp
• Titanium heat exchanger
• Eco-friendly R32 refrigerant
• Compact size: 42 x 35 x 38cm

Smart Operation

The integrated flow switch stops the unit when water flow ceases and restarts it automatically when flow resumes, allowing it to run in sync with your pool pump (including timers).

Bluetooth control via the Aqua Temp app allows you to:

• View pool temperature
• Set target temperature
• Turn the unit on/off
• Monitor performance data

Compatibility & Installation

• Suitable for above-ground pools (Intex, Bestway, Doughboy, etc.)
• Connects to 32mm / 38mm (1.25″ / 1.5″) hoses
• Requires minimum flow rate of 1.8m³/hr
• Uses existing pool pump – no additional equipment needed
• Supplied with hosetails, jubilee clips, and fittings

Installation is quick and straightforward—connect inline with your existing pool pipework.

Sizing Guide

Model	May–Sept	Apr–Oct
4kW	8m³	4m³
5kW	10m³	5.5m³

Based on use with a solar cover. Larger units may be required in colder conditions.

Important Notes

• Not suitable for koi ponds or winter use
• Output reduces in low air temperatures
• Remove from transport base before use

What’s Included

• Heat pump unit
• UK plug with RCD (EU adaptor included)
• 4m power cable
• Hosetail connections (32/38mm)
• Jubilee clips
• User manual

Warranty & Delivery

• 2-year parts warranty (UK)
• Free UK delivery (1–3 days)
• International shipping available
