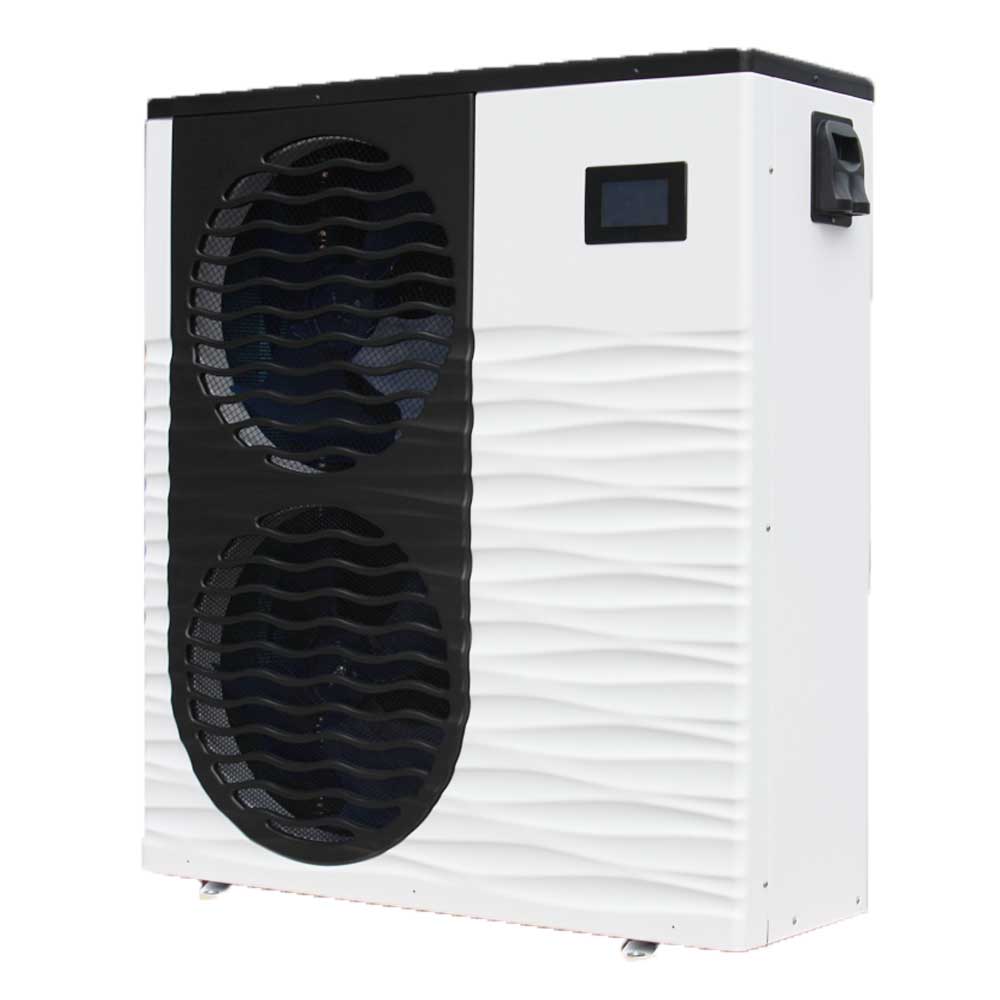

Thermotec Inverter Heat Pump 3 Phase Horizontal Swimming Pool 24kw with Wifi Pool Heater

Thermotec Inverter Heat Pump 3 Phase Horizontal 24kW with WiFi Swimming Pool Heater

The Thermotec Inverter 24kW 3 Phase Horizontal heat pump is a high-performance swimming pool heater designed for excellent efficiency, quiet operation and reliable year-round use. This model is part of the previous Thermotec Inverter case design and remains available for immediate delivery at a great price, while newer models are now sold under the Thermotec Inverter Pro range.

Fully inverter driven, the unit automatically adjusts fan and compressor speed to match the pool’s heating demand. This helps reduce running costs, improve temperature stability and lower start-up current, making it suitable for sites with sensitive or limited electrical supply. With COPs of up to 13, it delivers excellent efficiency, while larger evaporators improve heat output at lower air temperatures.

The unit includes a free WiFi module for remote control and monitoring using the Aqua Temp app or web browser, plus a 5-inch colour touch screen control panel for easy operation. It can heat and cool, operates in air temperatures down to -15°C, and is also suitable for koi ponds, indoor pools, swim spas and hot tubs.

Key Features

• 24kW 3 phase horizontal inverter heat pump
• Fully inverter driven with variable speed fan and compressor
• COPs of up to 13 for high efficiency and reduced running costs
• 3 phase power supply
• Suitable for swimming pools, koi ponds, swim spas and hot tubs
• Heating and cooling modes for year-round use
• Operates in air temperatures down to -15°C
• Water temperature adjustable from 10°C to 40°C in 0.1°C steps
• Koi pond temperature control accuracy down to +/- 0.5°C without a separate thermostat
• 5-inch colour touch screen display
• Built-in timer and water flow switch
• Soft start for reduced electrical start-up demand
• Mitsubishi variable speed inverter compressor
• Brushless DC fan motor for quiet, efficient operation
• Lockable control panel
• Automatic hot gas defrost
• Titanium heat exchanger for chlorine and saltwater pools
• Corrosion-resistant case
• R32 refrigerant
• Free WiFi module included

WiFi & Controls

The supplied WiFi module allows remote control and monitoring using the Aqua Temp app or a web browser. Functions include on/off control, temperature adjustment, timer settings, mode selection, silence mode, temperature history, weather information, and fault code display.

The 5-inch backlit colour touch screen shows water temperature, operating mode, timer status, fan operation, time, date, ambient temperature, fault codes, pool temperature history and power consumption graphs.

What’s Included

• Free WiFi module
• 2 x water connection unions with 50mm glue socket outlets
• 1 x basic winter cover
• 4 x rubber mounting feet
• Condensate drain hoses and drain spouts

Sizing Guide

Model	Output	Recommended Max Pool Volume	Absolute Max Pool Volume
Thermotec Inverter Horizontal 24kW	24.2kW	75m³	120m³

Koi Pond Sizing Guide

Model	Max Pond Volume
Thermotec Inverter Horizontal 24kW	11,600 gallons

Sizing assumes the pool or pond is covered to reduce heat loss and improve efficiency. For koi ponds, sizing assumes winter use at around 12°C with the pond covered.

Optional Extras

• 3G/4G mobile data module for locations without WiFi coverage
• Heavy duty mounting feet
• Bypass kit
• Heavy duty winter cover
• Remote display kit
• Plug and play cable kit for suitable lower input power units

Important Notes

• This is the previous Thermotec Inverter case design and remains available while stocks last
• A WiFi signal is required at the heat pump location for the supplied WiFi module
• If WiFi is unavailable, a 3G/4G module or signal extension solution may be needed
• For koi ponds, a backup heater is recommended in very cold weather
• A minimum pond water temperature of +8°C is required for start-up
• A bypass is recommended to allow winter draining

Warranty & Delivery

• 3-year parts and labour warranty on all components
• 5-year warranty on compressor and heat exchanger (parts only after year 3)
• Free UK delivery
• Typical UK delivery time: 1 to 3 days
• International shipping available on request
