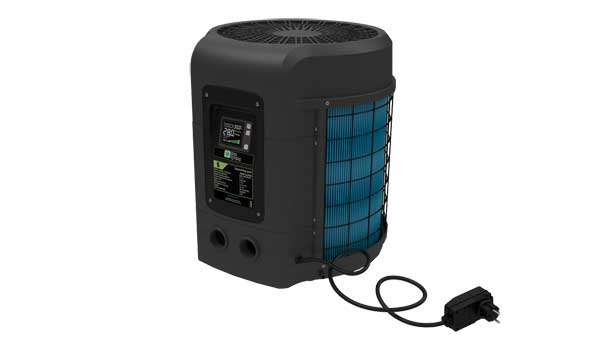

Sunspring Heat Pump 5kw to 12kw for Above Ground Swimming Pool Heater for Summer Use

1. Description

SunSpring Heat Pump are Designed for Above Ground Swimming Pools – Plug and Play!

They are quick to setup and remove in the winter

Comes complete with 3.5m cable and UK 13A plug/RCD and also flexible hose connections so you can be up and running to heat your pool in no time!

(We can also supply these with an EU 2-pin plug/RCD if required)

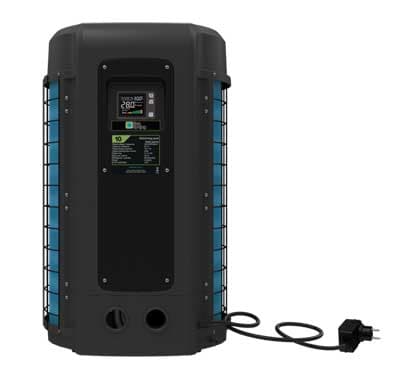

SunSpring 5kw/8kw	SunSpring 12kw

Easy to Operate – Sunspring Heat Pump

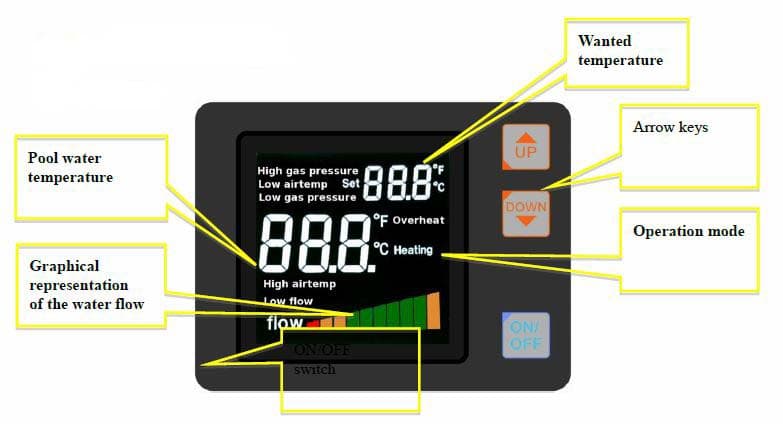

The SunSpring swimming pool heat pumps have a user friendly colour digital display panel

The display panel has three buttons for easy operation

The display has a unique water flow indicator scale to instantly show the water flow rate through the heat pump so that you can be sure that it is sufficient.

The display shows the current pool temperature and the set temperature.

Sunspring Heat Pump is Fitted with UK or Euro Plug

All of our Sunspring heat pumps are fitted with a UK 3-pin 13A mains plug/RCD.

We can also supply them with a 2-pin euro plug on request

Comes with UK 3-pin plug/RCD (shown above for models sold before June 2024)	Comes with UK 3-pin plug/RCD (shown above for models sold after June 2024)

If your outdoor socket is already protected by an RCD, then if you prefer, the fitted RCD/Plug can be unwired and replaced with a standard UK 13A plug.

Note: The Sunspring heat pumps require a 230v, 50hz power supply and therefore are not suitable for use in the USA/Canada (which uses a 110v, 60hz power supply)

Hose and Solid Pipe Connections Included with the Sunspring Heat Pump

The SunSpring models come with hose tails to take both 1.25″ (32mm) and 1.5″ (38mm) flexible hoses.

They also include the connectors for 50mm and 1.5″ solid pipework

Water Flow Rates

Please check that your existing pump and filter will deliver the flow rate required for the SunSpring heat pump.

If your pump and filter are too small, then we sell the Krystal Clear pump and filter sets with higher flow rates to suit the SunSpring heat pumps

Please Click Here to see pricing for these pump and filter sets

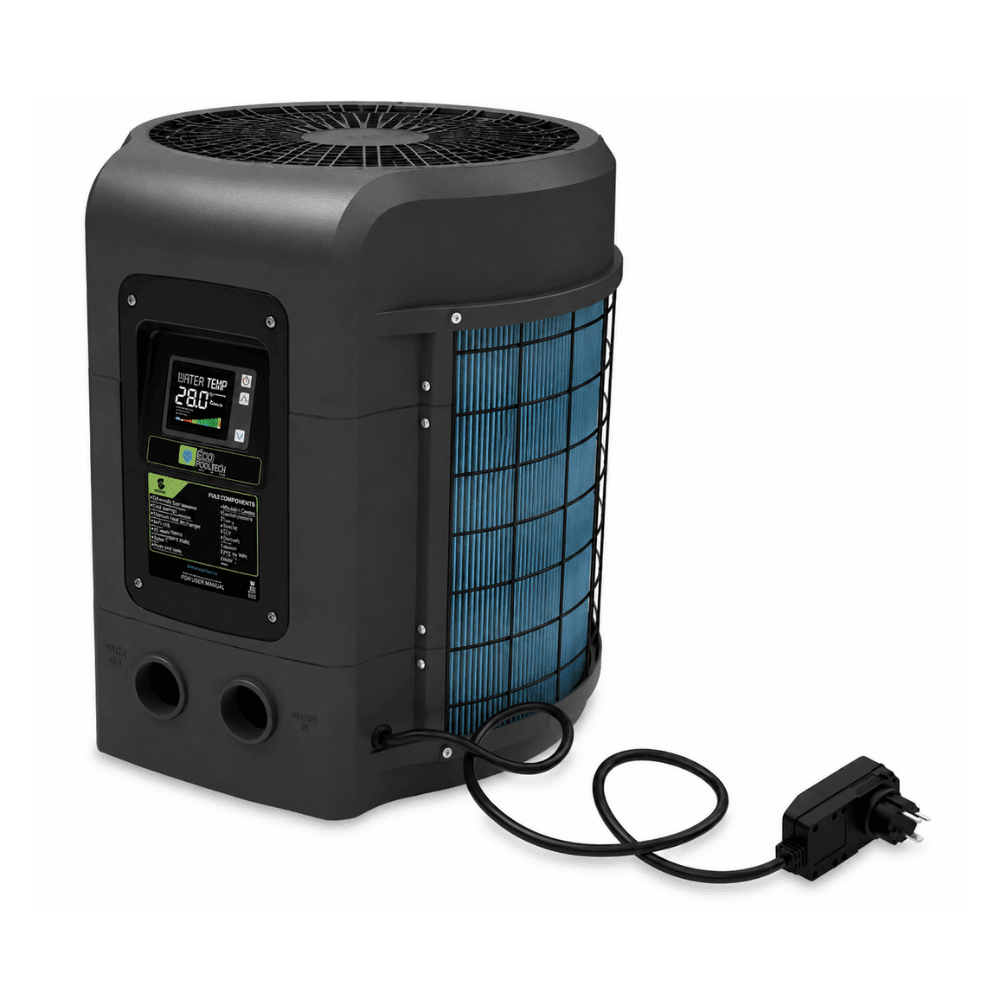

Sunspring 7 heat pump

Sunspring 7

2. Features

• Plug and play with fitted cable, UK 13A 3-pin (or Euro 2-pin if preferred) plug and RCD
• Specially designed for small and medium Pools (thin wall pools, polyester, metal or wooden wall pools <35m3)
• Comes with hose tail connections to allow easy connection of flexible pool hose for above ground pools.
• Includes stepped hose tails to accept both 1.5″ (38mm) or 1.25″ (32mm) pool hose.
• Also includes glue socket connectors for 50mm and 1.5″ solid pool pipe.
• Will continue to function even at low flow rates
• Can be used with sand or cartridge filters
• Requires an air temperature of +8°C and above to operate
• An exceptionally high COP value (5) for such a small compact heat pump.
• Easy and fast to install (<15 min). Plug and play
• User friendly, easy to use colour display with 3 buttons
• Water flow scale to show water flow rate through the heat pump
• Safety RCD protection and UK or Euro plug – Plug & play
• Comes with long 3.5m power cable
• Using sustainable materials (UV resistant Polymer casing and titanium heat exchanger)
• Full Flow Technology –  No Bypass needed
• Uses R32 refrigerant gas for an environmentally friendly operation
• Plastic rust-resistant polymer casing
• Note: The Sunspring units do not have a built in flow switch and so must not be allowed to run with no water running through them. We sell a time clock which can be used to turn the unit on/off at specific times if required.

3. Sizing & Models

Please use the chart below to select the best SunSpring heat pump model for your pool

Model	Output Kw	Max Pool Volume
SunSpring 5kw	5kw	12m3
SunSpring 8kw	8.1kw	22m3
SunSpring 12kw	12.2kw	35m3

However please note that these are the maximum sizes.

You should always oversize a heat pump, so we recommend that you choose the next model up in the sizing chart.

If in doubt about the model required for your pool, then please contact us and we will be happy to assist

How to Calculate Your pool Water Volume

You can easily calculate the water volume in your pool as follows:-

Round Pools

To calculate the volume of a round pool, you can use the formula

Pool Volume = 3.14 x radius x radius x depth

1. Measure the diameter of the pool in metres
2. Half the diameter to give the radius of the pool
3. Multiply 3.14 x radius x radius x pool depth

Example

A 12′ (3.66 m) diameter round above ground pool with a depth of 0.8m

Diameter = 12′ x 0.305 = 3.66m

Radius = 3.66 / 2 = 1.83m

Volume = 3.14 x 1.83 x 1.83 x 0.8m = 8.4 m3

The SunSpring 5kw supports pools up to 12m3 so would be OK for this pool, as we always allow a 20% difference in the pool volume in the pool and what volume the heat pump can cope with.

We always recommend going up in size when choosing a heat pump (where possible) as the results will be far more satisfactory, especially if you are located anywhere north of our location in Essex. All our sizing is based on the South of the UK outdoor air temperatures and any difference to this equation will make a huge difference to performance of the heat pump, and the results that you feel in your pool.

Rectangular Pools

Pool volume = length x width x depth

Example

6m x 4m pool, 0.8 m deep = 6 x 4 x 0.8 = 19.2 m3

4. Specifications

Please Specifications tab at the top of the page:

5. Optional Extras

Flexi Hose		You may need to purchase an additional length of pool hose to connect from your heat pump to the pool. We sell both 1.5″ and 1.25″ pool hose Please click on this link to add some to your basket – Hose and pipe fittings the Thermotec mini can also be connected using Intex hose with white nuts on the ends
Jubilee Clips		Stainless Steel Jubilee Clips 30-50mm
2″ to 1.5″ Nipple		2″ to 1.5″ Nipple x 2 can be screwed into the SunSpring if you are using the 38mm Intex Hoses with nuts on the end
1.5″ Above Ground Bypass Kit		If you do not plan to drain your pool in winter, we recommend using a bypass kit. This allows you to isolate the heat pump and drain it down whilst keeping the water in the pool We sell a bypass kit for above ground pools which comes complete with hose-tails, short lengths of pipe and glue etc
Automatic Time Clock		If you would like to automatically turn on and off the SunSpring pool heat pumps, then we also sell heavy duty time clocks which are suitable. Note: The Sunspring heat pumps do not have a built in flow switch and so must not be allowed to operate without water flowing through the unit.

6. Product Literature

Please click the links below to download pdf brochures for the Sunspring products

SunSpring User Manual New 2022 Models
SunSpring User Manual 7kw and 10kw models

7. Warranty & Support

All SunSpring Heat Pump products come with the following warranty:-

• 2-years parts warranty on all components in the UK
• 2-years parts warranty on all components in Europe – parts only warranty or return to us in the UK (customer pays transport cost). If spare parts are required, they will be sent free of charge to a UK address. If they are to be shipped outside the UK, the customer pays the international shipping cost
• Warranty subject to the unit being installed in accordance with manufacturer’s instructions.

8. Delivery

Update May 2024:

The 8kw models are in stock in our warehouse in the UK. The price includes VAT and FREE UK delivery. (excludes Scotland and some UK postcodes).

The 5kw and 12kw Models are on order and should arrive in the UK at the beginning of June so please order now to reserve your item.

We can deliver the SunSpring heat pumps to any country – please contact us for a shipping quote.

9. Installation

Easy Installation on the Sunspring Heat Pump

The SunSpring Swimming Pool Heat Pumps are designed for quick and easy setup and operation.

They come complete with UK (or Euro), RCD/plug and flexible hose connections to suit most above ground pools

Note: The SunSpring08 and SunSpring12 come with a pre-fitted UK plug/RCD (or Euro plug/RCD on request).

Please read the PDF installation manual below for more information on how to install the SunSpring swimming pool heat pumps

We can provide advice on installing your heat pump. We can also offer an installation service if required.

Please see our Installation pages for photographs of examples of pool heat pump installations and also the FAQ pages for more information

10. Delivery of the Sunspring Heat Pump

The price includes VAT and FREE UK delivery. (excludes Scotland and some UK postcodes).

We can deliver the SunSpring heat pumps to any country – please contact us for a shipping quote.

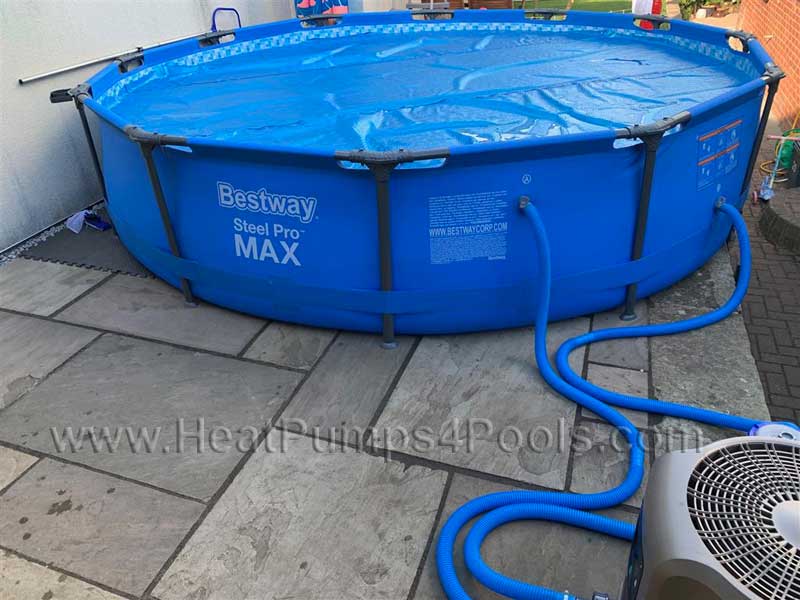

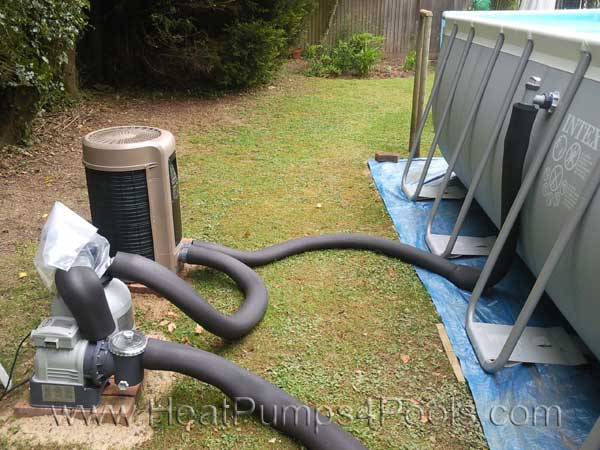

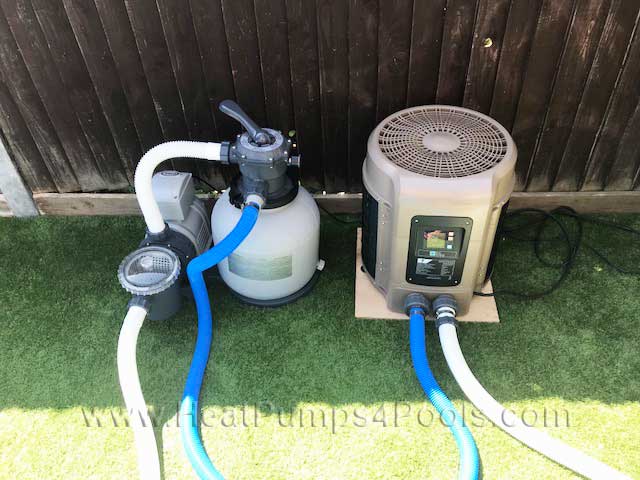

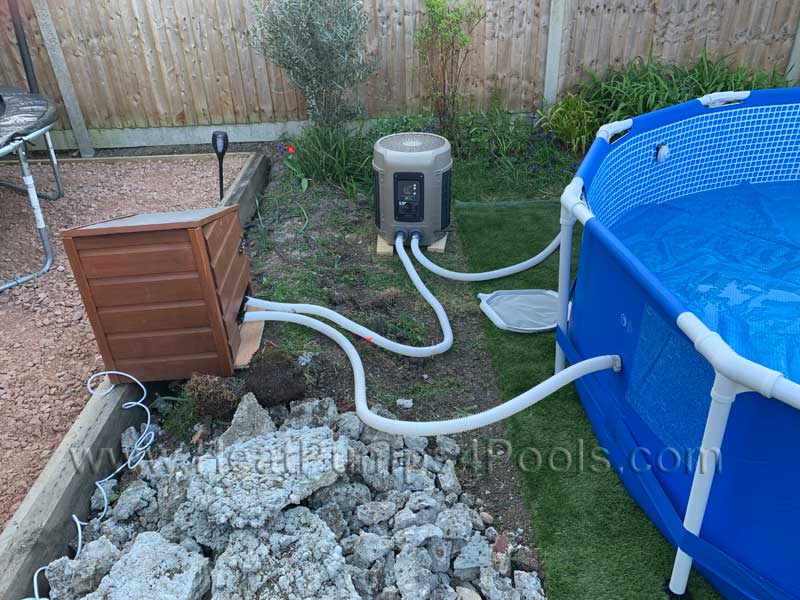

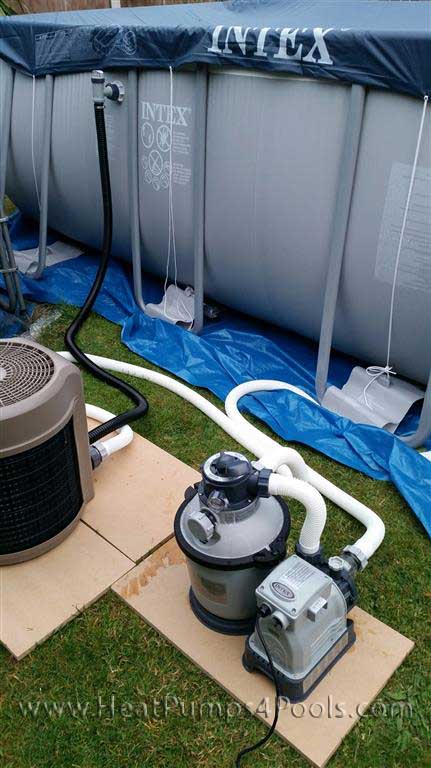

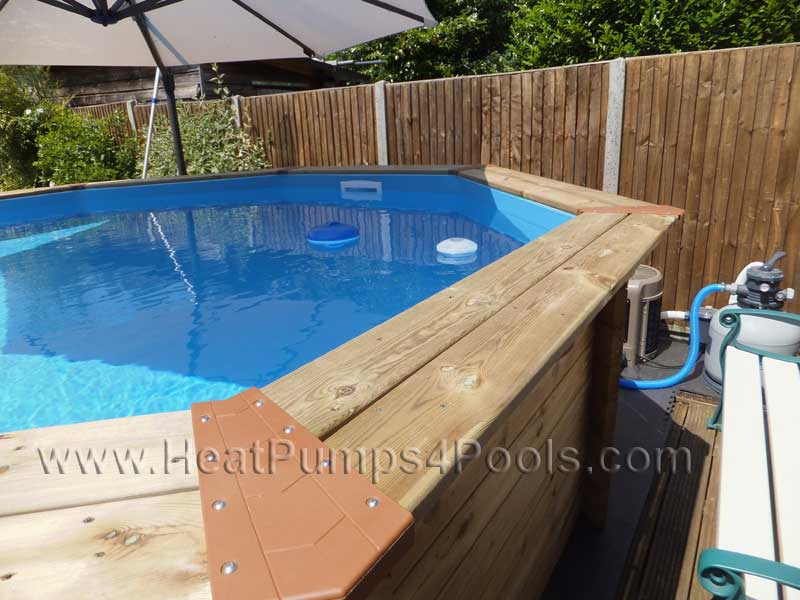

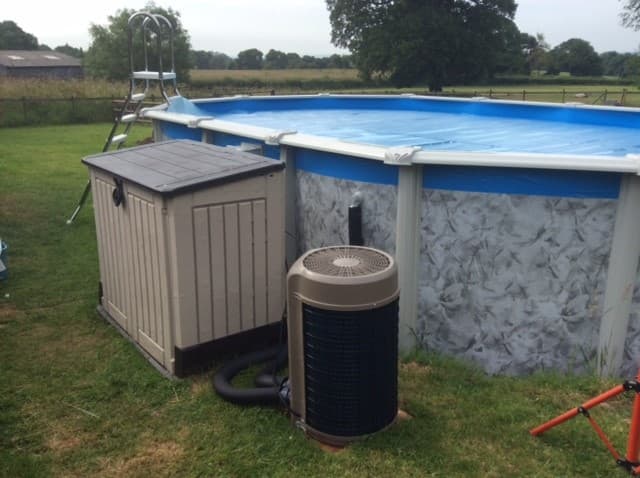

Typical setup (customer photo)

10. Videos

Please view the videos below which were kindly sent in by our customers with Sunspring heat pumps on above ground pools.
