Electric Heaters
Elecro Evolution 2 Digital Heater Electric Water Heater for Swimming Pools 3kw to 24kw
Please note the lead time on these items is 15 working days currently
KW
Phase
From £638
Select options to confirm priceAbout this pool

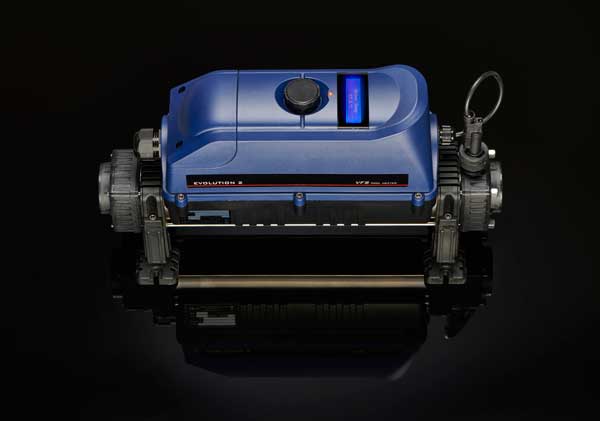

Elecro Evolution 2 Digital Heater Electric Water Heater for Swimming Pools 3kw to 24kw
Elecro Evolution 2 Digital Heater is manufactured from top quality components.
The Elecro Evolution 2 Digital Heater has been designed to be a direct physical replacement for the original EVO heaters and will fit existing plumbing you may already have in place for an original EVO.
The heater is supported on two swivel feet which can be rotated to permit either wall or floor mounting, the control components are positioned on the front face of the electrical enclosure.
This unit is also available in Analogue this link: Evolution 2 Analogue Electric Heaters version allowing ideal for koi ponds and pools.
The desired pool temperature can be easily selected on the EVO heater using the panel-mounted thermostat dial. The single or three-phase power is supplied through a top quality Schneider contactor. Safety and equipment protection is provided by the highly reliable flow switch. Over-temperature protection is provided by the thermal cut out (manual reset).
Delivery is on a 5-7 working day lead time as they are made to order
- Digital control on request with 0.5C differential and select-able multilingual display
- Ten power options ranging from 1kW – 24kW
- Easy to install, fully equipped and pre-wired
- Robust, durable construction
- Ultra-reliable flow switch allows safe operation
- Temperature thermostat and overheating sensor
- Compact, durable design
- Titanium flow tube and heating elements
- Can be floor or vertically wall mounted
- Vortex, long life, stay clean heating element technology
- 100% efficiency throughout the product life
- Silent operation
- Does not come with any cable or plug
- 3 Years Warranty
Whilst electric heaters are not as energy efficient to run as heat pumps, they can be useful to act as backup or booster heaters to heat pumps.
Indoor pools and koi ponds can use an electric heater in conjunction with a heat pump.
In extremely cold weather, the heat pump may not produce sufficient heat to maintain the desired water temperature. An electric heater can be set to turn on under these conditions to boost the water temperature back to the desired level.
3. Sizing
The guide for sizing electric pool heaters is 1.5kw per 1000 gallons of pool or pond water. Or 1.5kw per 4.5m3 of pool water
so for a 20m3 pool, you would need at least a 6.6kw electric heater.
Note that the maximum size of electric heater that can run from a UK 13A socket is 3kw
Our Sunspring heat pumps output up to 10kw of pool heat from only 1.7kw of electricity and so have much lower running costs than electric pool heaters and they can plug into a standard 13A power socket.
| Power Output | Load (Amp) | Volts | Dimension ‘L’ |
| 3kW | 13 | 230v | 462-mm |
| 4.5kW | 20 | 230v | 462-mm |
| 6kW | 27 | 230v | 462-mm |
| 9kW | 40 | 230v | 462-mm |
| 12kW | 52 | 230v | 462-mm |
| 15kW | 66 | 230v | 592-mm |
| 18kW | 79 | 230v | 592-mm |
7. Data Sheet
You may need to purchase some additional fittings for installation of this unit, so please take a look at our – Hose and pipe fittings
Please click the links below to download pdf brochures for these products
 Elecro Evolution 2 Data Sheet |
|---|
| Elecro Evolution User Manual |
The Elecro Evolution 2 pool heater comes with a 3-year warranty.
We recommend that you retain the packaging in case you need to return the unit to us for repairs under the warranty.
We are happy to provide technical support for all Elecro Evolution products that we supply.
All electric heaters are made to order and the normal lead time is approx 5-7 working days
Please note that as these items are bespoke and made to order they are non-returnable (unless faulty)
The price includes FREE UK delivery.
We can ship this item to any country. Please contact us for a shipping quote.
The heater must be installed by a qualified electrician who must provide a certificate of conformity upon completion of the work.
The heater should be either installed horizontally or vertically allowing enough space for the pipe connections and wiring. It should be firmly secured using screws to a firm base or wall.
The heater should be installed at a low point in the filtration system. It should be positioned downstream of (after) the filter and upstream of (before) any dosing or other water treatment plan. Please ensure flow direction is correct.
The flow rate of water into the heater must not exceed 17,000 litres per hour (17m3/hour/3,740 UK gallons per hour). A higher flow rate will require the installation of a by-pass to prevent damage to the heater elements.
The universal unions are supplied with this heater.
Please call us for more information.
| Elecro Evolution 2 Data Sheet |
|---|
| Elecro Evolution User Manual |
