1. Description

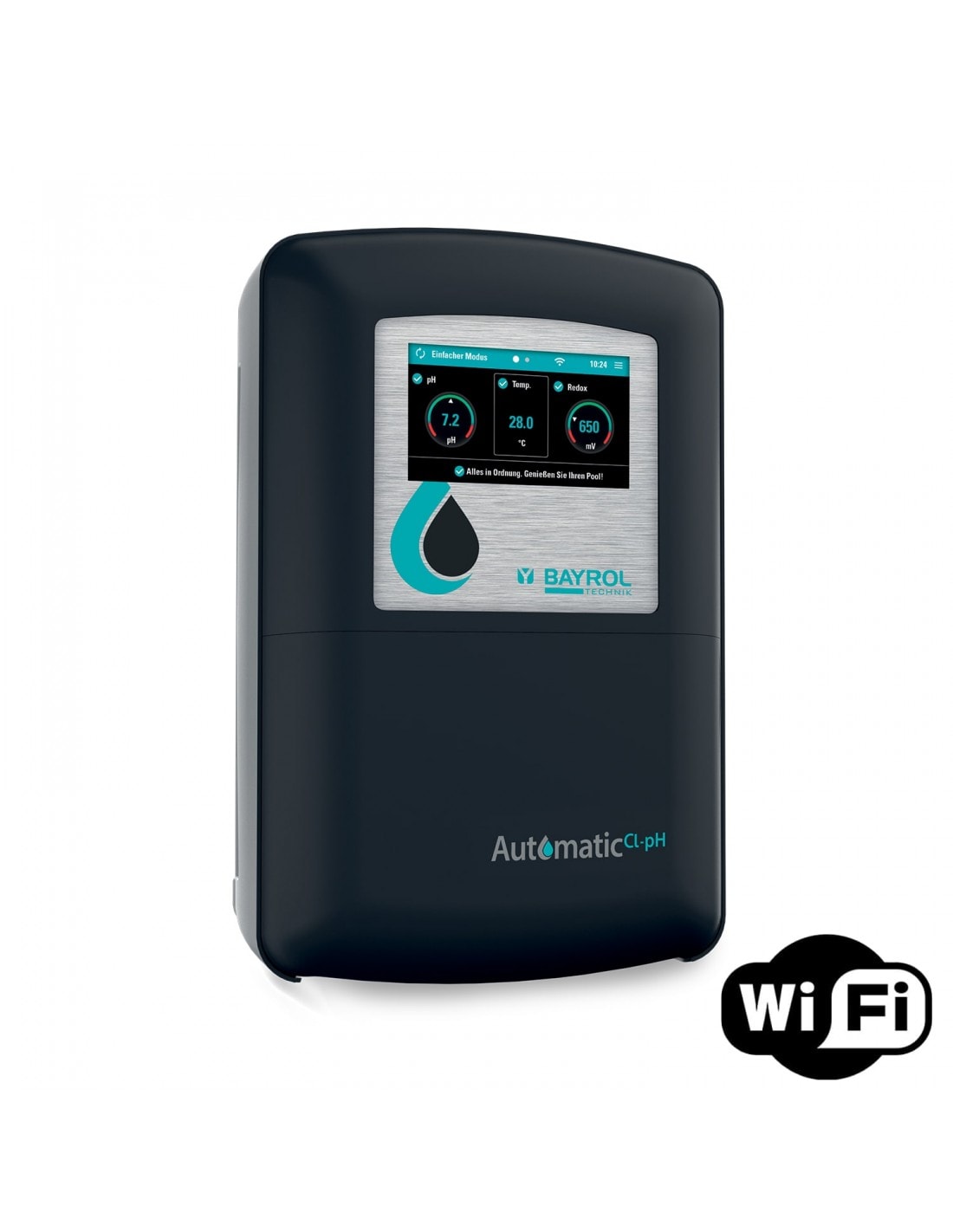

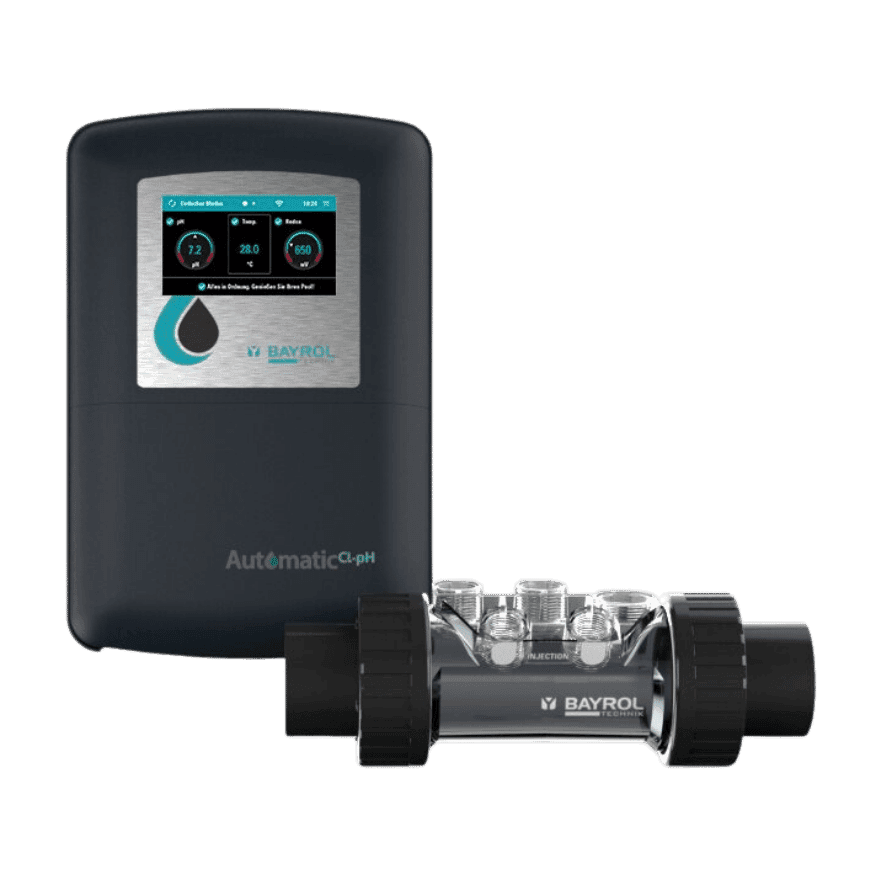

The new Bayrol Automatic Cl-pH takes over the automatic measurement of pH and chlorine disinfection and controls the dosing of the necessary water care products as needed. This dosing system is perfect for pools up to 90m³. With built-in WiFi the Automatic dosing system allows for remote access via any enable device.

The Bayrol Automatic Cl-pH is equipped with the new Smart & Easy technology, which automatically adapts the reactions of the device to the needs of your pool. The sophisticated intelligence of the Smart & Easy technology supports you in every situation, making operation as easy as possible. The Automatic offers complete pool water care and a large intuitive touch screen for a user-oriented interface with easy navigation and visual and acoustic warning.

Developed and manufactured by Bayrol Technik in Germany. Benefit from strict quality controls throughout the production chain, from mechanical and electronic components to assembly. With Bayrol Automatic Cl-pH, setting a perfect pH value and the exact dosage of disinfectant is child’s play.

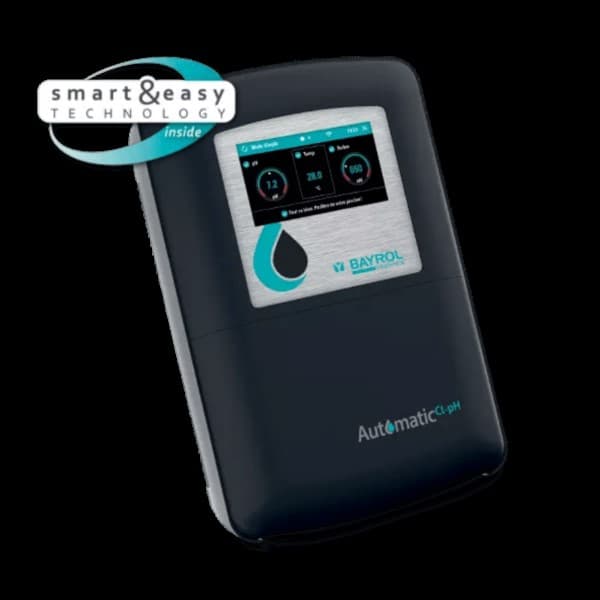

Smart&Easy Technology

• Easy to use, whether you’re a novice or an expert
• Simple commissioning and reliable operation with visual and audible warnings.
• User-friendly, intuitive interface with a large 4.3″ touchscreen.
• Intelligent software functions, such as first-time commissioning wizard and step-by-step instructions in the event of warning messages.

Integrated WiFi module

• Control Automatic Cl-pH remotely
• Comes as standard with an integrated WiFi module for remote control via Smartphone or PC.
• Full access to settings and total control of your pool, even on the move.

Precise analysis & dosing

• Ensures exact dosing of required quantities at all times
• Accurately analyzes and doses pH and chlorine (via redox measurement).
• Ensures stable water balance and safe disinfection with optimum disinfectant content.
• Chloriliquide and pH-Minus Liquid are injected by powerful, silent dosing pumps.

2. Features

• Continuous measurement of pH and Chlorine (via Redox)
• Low-noise peristaltic dosing pumps
• Dosage of pH-Minus Liquid Domestic or pH-Plus liquid
• Dosage of Chloriliquide*
• 4.3″ touch screen, user-oriented graphical user interface, simplified navigation
• Integrated WiFi module for remote access
• USB port for updates

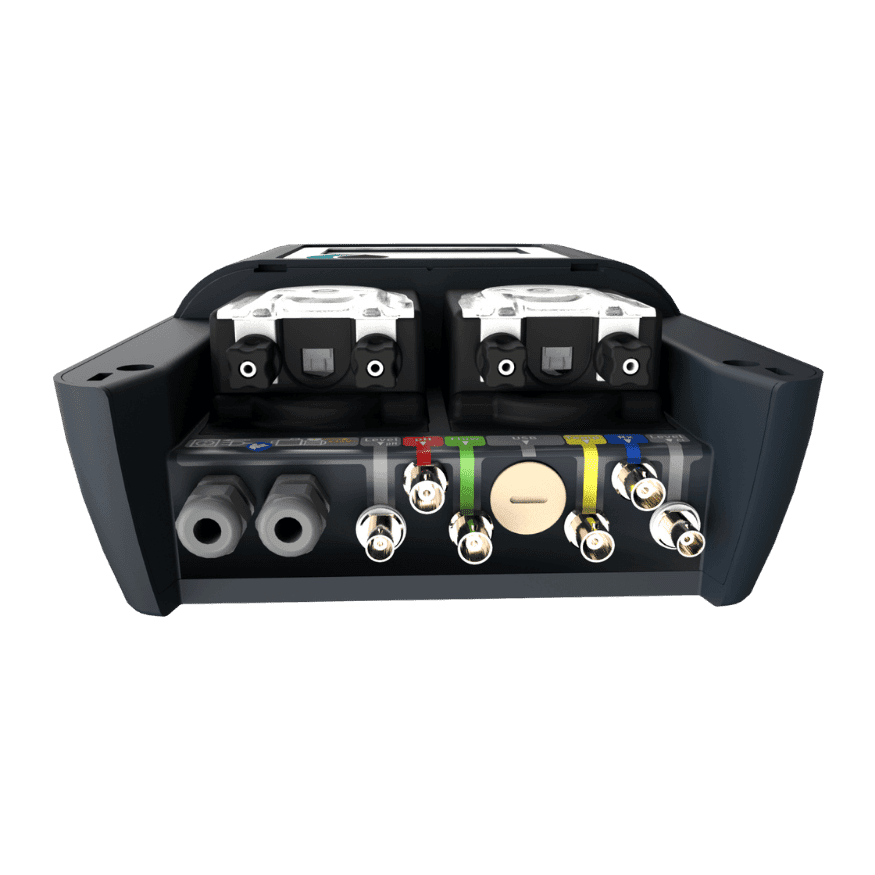

• Simple electrical installation due to tool-free plug connections
• Level monitoring of the dosing liquids (suction lances available as option)
• Water temperature display (optional extra)

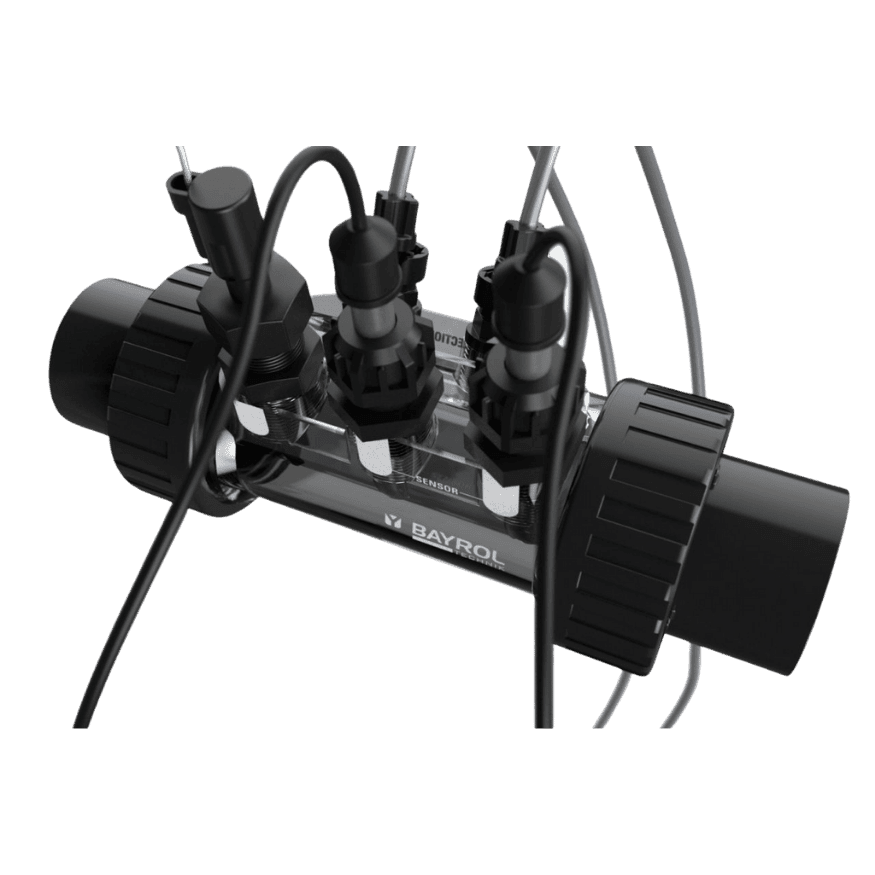

• Compatible with Smart&Easy Connector (optional) – a practical connector for easy installation of the sensors, the injection valves and the included flow switch.

3. Sizing & Models

4. Specifications

5. Accesories Included

6. Product Literature

Please click the links below to download pdf brochures for these products

Bayrol Automatic Cl-pH Brochure
Bayrol Automatic Cl-pH User Manual

7. Warranty & Support

Bayrol Automatic Cl-pH comes with a – 3 Years warranty on controller and cell

We are happy to provide technical support for all Bayrol Automatic Dosing Systems that we supply.

8. Delivery

We hold all sizes of the Bayrol Automatic Cl-pH in stock for delivery on a 3 working day service.

The price includes FREE UK delivery.

We can ship the  Bayrol Automatic Cl-pH to any country. Please contact us for a shipping quote.

9. Installation

Installation is straightforward. The Automatic Cl-pH is wall mounted using the wall mounting kit.

The Automatic Cl-pH should be installed at a low point in the filtration system. It should be positioned downstream of (after) the filter.

Please see the user manual below for more information.

Bayrol Automatic Cl-pH Brochure
Bayrol Automatic Cl-pH User Manual

10. Videos
