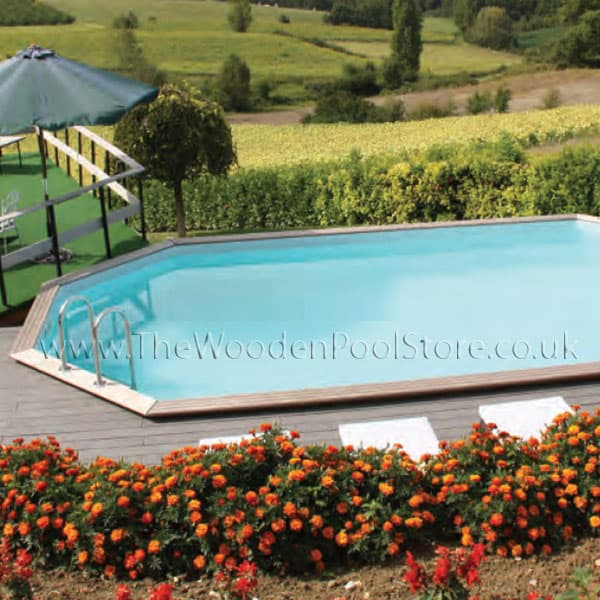

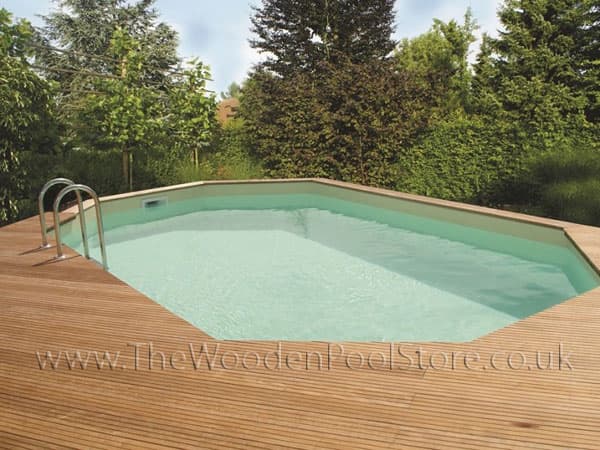

Luxury Octoo Wooden Pools - inc Solar Cover

1. Description

The Octoo is the perfect DIY wooden pool to add a bit of luxury to your lifestyle. Easy to build and comes with a solar cover to protect your pool and keep heat in. Made of the finest treated redwood pine, it is durable and robust. Whether you choose to build this timber pool yourself or have someone install it, it is still great value.

Our heaters have been specially selected to ensure maximum heat with minimum costs, so you can enjoy your pool without worrying about a heating bill, although the heat pumps are more expensive to buy they have a much lower running cost and you will quickly regain the initial outlay they are also Eco-friendly. The exotic hardwood coping provides a beautiful finish and will complement any garden style. These pools can be fully submerged due to their stainless steel supports which are placed in a concrete block pit.

10 year wood warranty

Using the options below you can create your ultimate pool including lights and heating. Our heaters compliment these pools beautifully and have been specifically designed to offer maximum heat with low running costs.

Our team are always on hand to help with any build questions, alternatively we can recommend an installer in your area

3. Equipment Included

• Wooden frame
• All structure hardware
• Wooden coping in exotic hardwood
• Antibacterial felt underlay
• 0.75 light blue liner
• Red pinewood external stairs
• Sand filter with 6 way valve and all accessories such as hoses and sand
• 12m3/h Pump (8m3/h ofr 3m x 5m)
• 2 wide angled skimmers and 2 inlets
• Maintenance Kit including vacuum cleaner, scoop, rod etc)
• Chemical start-up kit
• Wooden finishing profiles for metal supports

Please note carriage fees may apply. Please call us to find out more.



Interlocking Corner Joints	Hardwood External Stairs	Mitered Corner	Coping Corner Trim	Internal Corner Profile





4. Optional Extras Available:

We offer a wide range of options which are compatible with this pool including cleaners, lights, pool covers etc.

External Hardwood Stairs	Winter Cover for the Heat Pump	1 x Britestream LED Light
Transformer 100W	Wooden Pool Light Conversion Kit	Above Ground Bypass Kit



5. Heating the pool

If you are looking to heat your pool, you have the choice of two options:

• Electric Heater which is cheap to buy but expensive to run
• Heat Pump which is slightly more expensive to buy but is a lot cheap to run .

1/ Electric Heater which is cheap to buy but expensive to run and will heat your pool all year long.

You will achieve 1 Kw of heat output into the water for every 1 Kw of power used from your supply. So works out a lot more expensive to run than the Heat pump option.

Elecro Evolution Electric Pool Heater, (Must be kept Indoors or in Plant Housing)

2/ If you are looking to use a Heat Pump to keep the running cost down then you have to decide which months of the year you want to swim:

• Summer (May - Sep)
• Extended Season (Apr - Oct)
• All Year

Once you have decided this you can than look to see which heat pump is the best one for you. Now this will vary depending on the pool's location in the country as the outside air temperature is drastically different in Scotland from Cornwall's air temperatures (taking into account the worst temperatures at night and the coldest parts of the period you choose).

We can help size the correct unit for you to ensure you achieve the desired water temperature (normal temp for this pool is 28 degrees, and it should not be heated over 30 degrees as this reduces the life span of the liner).

As a rough guide for this pool we have added some options at the top of this listing for you, but here is a explanation to the season to expect from each. Please bear in mind that you can never over size a heat pump but the results of under sizing it will mean you will not have the water temperature you require for the period you want. In addition to this, if you are further up North please increase the size of your heat pump to compensate for the colder outside air temperatures.

The size of the heat pump needed will depend on the water volume of the pool, we are making the assumption that the pool will be heated to 28 degrees and will be covered with all solar cover for 20 hours a day with a single-phase power supply.

If any of these factors change please advise us as we can look at the recommendations again for you to be accurate.

Pool	Water Volume	Summer Use (May-Sep)	Extended Season Use (Apr-Oct)	All Year Use
Octoo 4.2m Wooden Pool  (1.2m Deep)	17m3	SunSpring 7kw Heat pump Thermotec Eco Fun 8.5kw	Thermotec Eco Fun 11.5kw Thermotec Eco Inverter 12kw	Thermotec Inverter 17kw
Octoo 5m Wooden Pool  (1.2m Deep)	24m3	SunSpring 10kw Heat pump Thermotec Eco Fun 11.5kw	Thermotec Eco Fun 13.5kw Thermotec Eco Inverter 16kw	Thermotec Inverter 17kw
Octoo 8.1m x 4.6m Wooden Pool  (1.33m Deep)	50m3	Thermotec Eco Inverter 19kw	Thermotec Inverter 24kw	Thermotec Inverter 29kw
Octoo 6.2m x 3.9m Wooden Pool  (1.2m Deep)	29m3	SunSpring 14kw Heat pump (hard wired unit) Thermotec Eco Fun 13.5kw Thermotec Eco Inverter 16kw	Thermotec Eco Fun 15kw Thermotec Eco Inverter 19kw	Thermotec Inverter 20kw



6. Installation and Assembly

The pool can be assembled by most competent DIY installers, or the customer can choose to use a local carpenter or handy-man to assemble the pool.

A qualified electrician should be used to run the power supply to the pool and to make the necessary connections.

This pool requires a concrete base as per the instruction manual below.

The steels are to be set into the concrete base in the correct position to ensure the pool/water weight is supported fully.

Underlay is supplied with the pool which is laid under the liner to help protect it from damage

Please see the user manual for details of how to install the pool

Please ensure that you have sufficient time, labour, tools and the skill required to assemble the pool before purchasing

Please contact us if you have any queries

7. Delivery and Packing Details

These pools are made to order

The lead time on purchasing one of these pools is 4-6 weeks.

We offer delivery to most postal address's in the UK, unless you are in a remote area where our courier will charge a fee

You will have 2 options:

The wooden pool will be delivered in several large wooden pallets on a high sided lorry which you will need to unload (so plenty of help will be required)

or

You can choose to have the pool delivered on a Hiab lorry which will allow the driver to use a crane to lift the pallets on to your property/driveway.

Before delivery, the delivery company should call you to arrange a suitable delivery date

When the lorry arrives at your property the driver will unload onto your drive. Please note a lot of delivery drivers will not deliver to a gravel drive, please specify if your property has a gravel drive.

We would recommend you have additional help to move the pool to a dry position free from sunlight for storage until the pool will be installed.

Please inform us in advance if your property has restricted access for large vehicles

8. Product Videos

9. Warranty

The warranty on the Gardipool pool range is

• 10 years on the structure of these wooden pools

10. Product Literature

Brochure
Octoo Wooden Pools Installation Manual



11. Questions?

If you need any assistance or advice, please Contact Us and our friendly team will be happy to assist

for more information, also see our FAQs page

All items sold in accordance with our terms and conditions

for all enquiries, please contact us at enquiries@thewoodenpoolstore.co.uk
