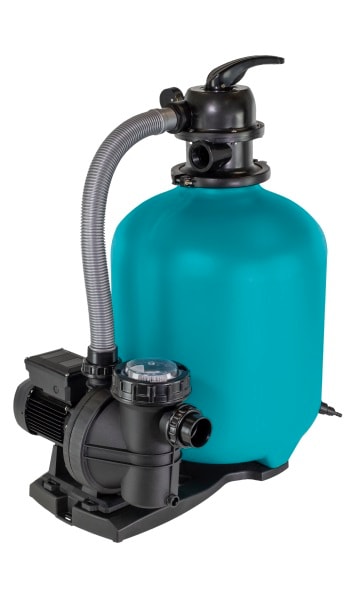

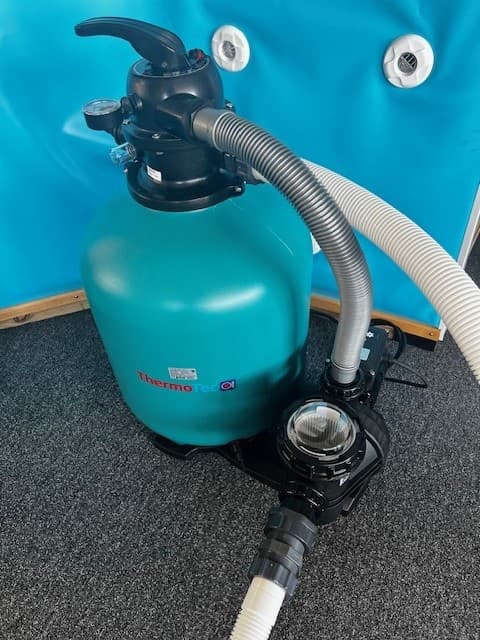

Thermotec 450 Pump Filter Set Complete Filtration for Swimming Pools with Flow rates of 8m3/hr

Thermotec 450 Pump Filter Set Complete Filtration for Swimming Pools Flow rate of 8m3/hr

1. Description

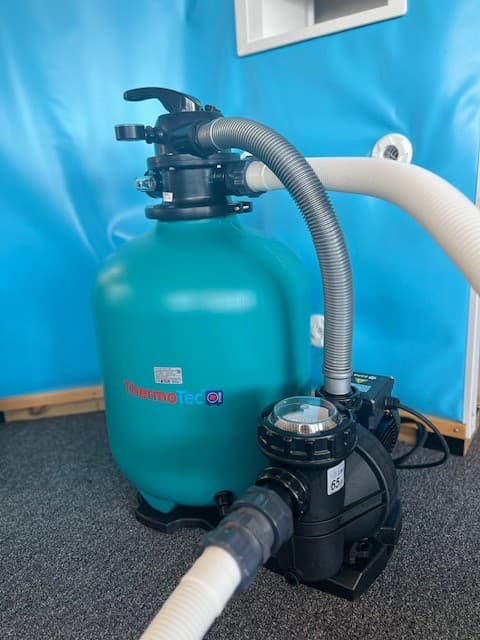

Thermotec 450 pump filter set is suitable for in-ground or above ground pools. Water re-circulation and sand/glass filtration for small residential swimming pools.

Thermotec pump and Filters sets come with a top mounted multi-port 6 way valve. These compact sets include a filters are with modified polypropylene to  resist chemical and atmospheric agents and are made of the highest quality and are very quiet units.

The Thermotec Pump and filter sets offer a wide versatility and maximum quality. In 3 sizes from 300 to 450mm filters for swimming pools with a water volume up to 64m³.
They are compatible with salt water (up to 7 g/liter), chlorinated water, demineralised water.

2. Features



• Ultra quiet
• Self priming
• 0.33hp pump
• 18″ Filter with top mounted multi-port 6 way valve
• 350mm Polyethylene moulded filter tank
• Plastic base for pump and filter
• IPX5 rated so we would recommend that the unit needs to be housed in the UK

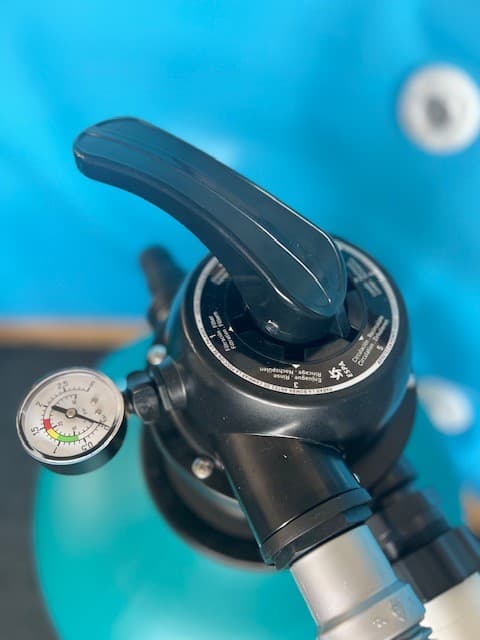

• Pressure gauge (to show when filter needs back washing)
• 2 x Threaded stepped 32/38mm Hosetails

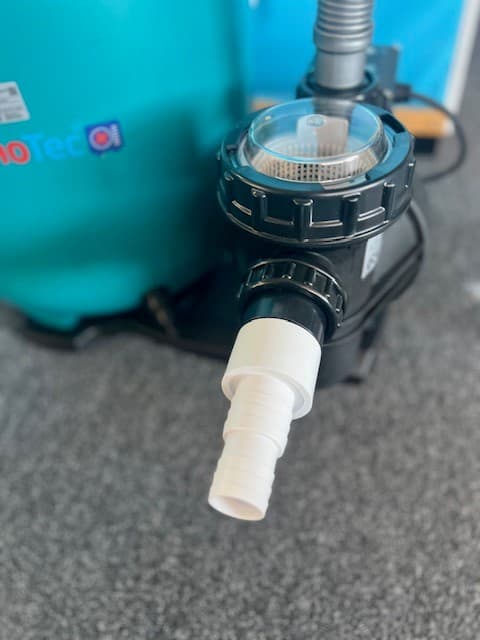

• Pump Inlet has 38mm Glue socket so you may need a 38mm male hosetail and glue to install this unit with 38mm Flexi Hose.
• Pump comes with 2m cable and UK 3-pin plug
• Flow rate of up to 8m3/hr – depending on pipework, bends etc
• Max water temp of 40 degrees
• Requires 3 x 25kg bags of filter sand (75kg) or 52.5kg filter glass media (2/3 bags at 25kg)
• Ideal for use with 38mm(1.5″) pool flexi hose & Jubilee clips

3. Sizing & Models

4. Specifications

5. Optional Extras

Intex Hose Connections

Pump Inlet

Filter Outlet

Connection Kit – Intex Hose		Kit Includes: Filter Outlet – 1 x 1.5″ – 2″ Threaded Nipple Pump Inlet – 1 x Plain Socket Spigot 50mm – 2″ Female Thread + 1 x 2″- 2″ Threaded Nipple 1 x 0.25l Bluefast PVC Fast Drying Glue
Intex Accessory Hoses		You may also need 3 x Intex Accessory Hose’s to connect this pump and filter set to your pool, if also adding a heater (2 if no heater included).

---

Flexi Hose Connections

Pump Inlet

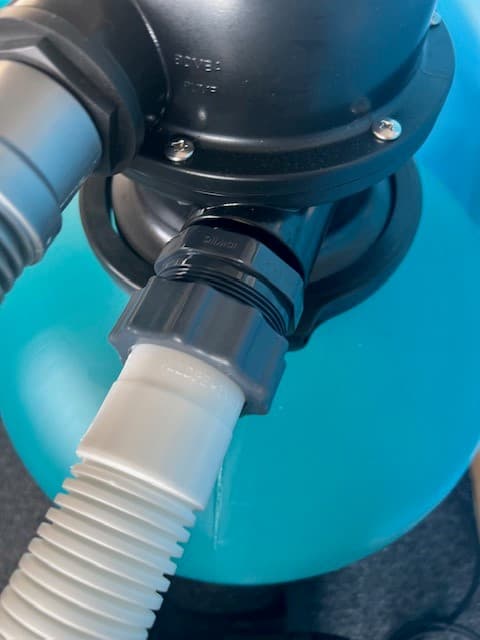

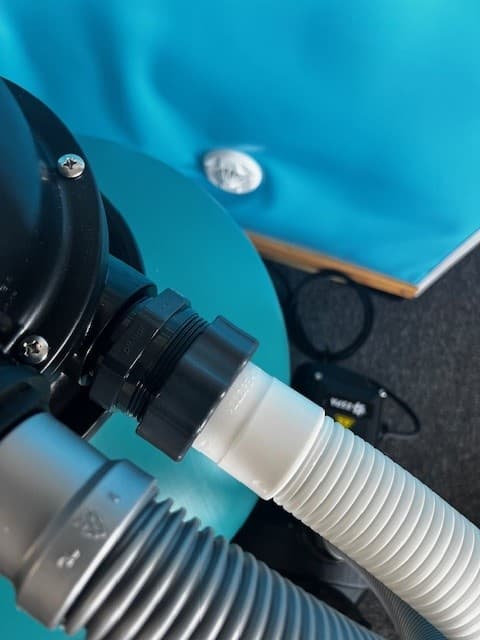

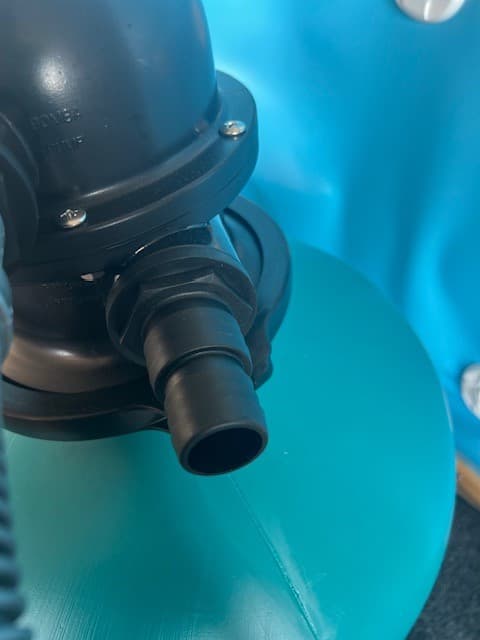

Filter Outlet – Hosetail inc with pump filter

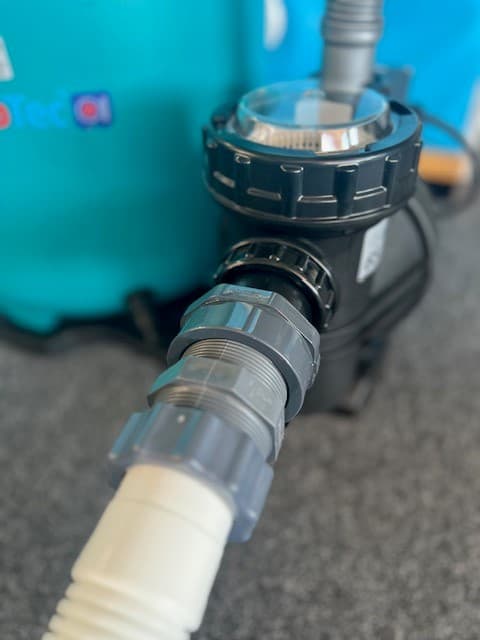

Connection Kit		Pump Inlet – 1 x Plain Socket Spigot 50mm – 2″ Female Thread + 1 x 2″- 2″ Threaded Nipple 1 x 0.25l Bluefast PVC Fast Drying Glue
Flexi-Hose		Or you can used 3 lengths of Flexi Hose to connect this pump and filter set to your pool, if also adding a heater (2 if not heater included).
Jubilee Clips		6 x Stainless Steel Jubilee Clips 30-50mm – If using the Flexi hose

---

Glass Media

You will need to purchase either sand or glass media for the filtration, which is placed inside the filter tank as per the instructions. We recommend the glass media as it gives better quality filtration.

6. Product Literature

Please click the links below to download pdf brochures for these products

Thermotec 450 Pump & Filter Manual
Thermotec 300/350/450 Pump & Filter Spare Parts List

7. Warranty & Support

The Thermotec Pumps and Filter Sets come with a 2 year parts only warranty.

We are happy to provide technical support for all Thermotec  swimming pool pump and filter sets that we supply.

8. Delivery

These units are currently on a 3 day lead time with free shipping to mainland UK, once they arrive in April 2024.

You can pre-order your item now

9. Installation

The pump/filter set needs to be assembled and comes as a filter, pump and a bag of fittings

Dimensions:

10. Videos
