Intex Pool Filter Pump Krystal Clear Pump and Sand Filtration Set Models 1 to 4 for all Above Ground Swimming Pools

Intex Filtration Set Krystal Clear Pump and Sand Filter Sets Models 1 to 4 for Above Ground Swimming Pools

/*! elementor - v3.19.0 - 07-02-2024 */
.elementor-widget-image{text-align:center}.elementor-widget-image a{display:inline-block}.elementor-widget-image a img[src$=".svg"]{width:48px}.elementor-widget-image img{vertical-align:middle;display:inline-block}

1. Description

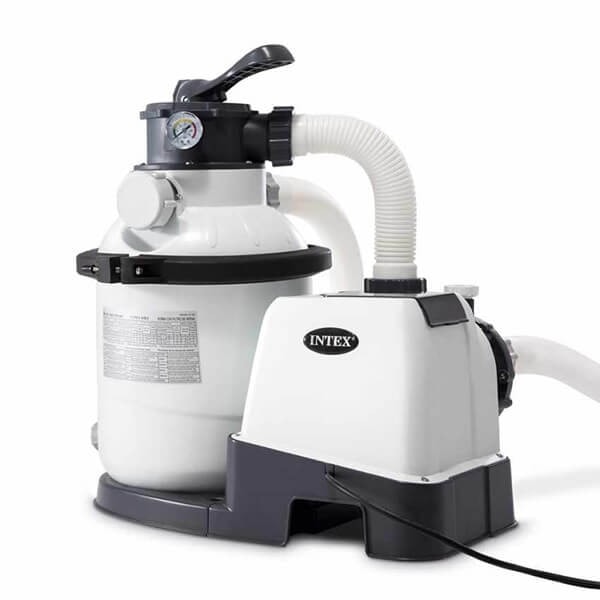

Intex Filtration Sets: Krystal Clear pump sand filters have long been the leading choice for the above ground market for keeping pool water clear and sparkling, with built in 24 hour timer adding to a hassle free experience with maintaining a cleaner pool.

Pipe Kit Included:

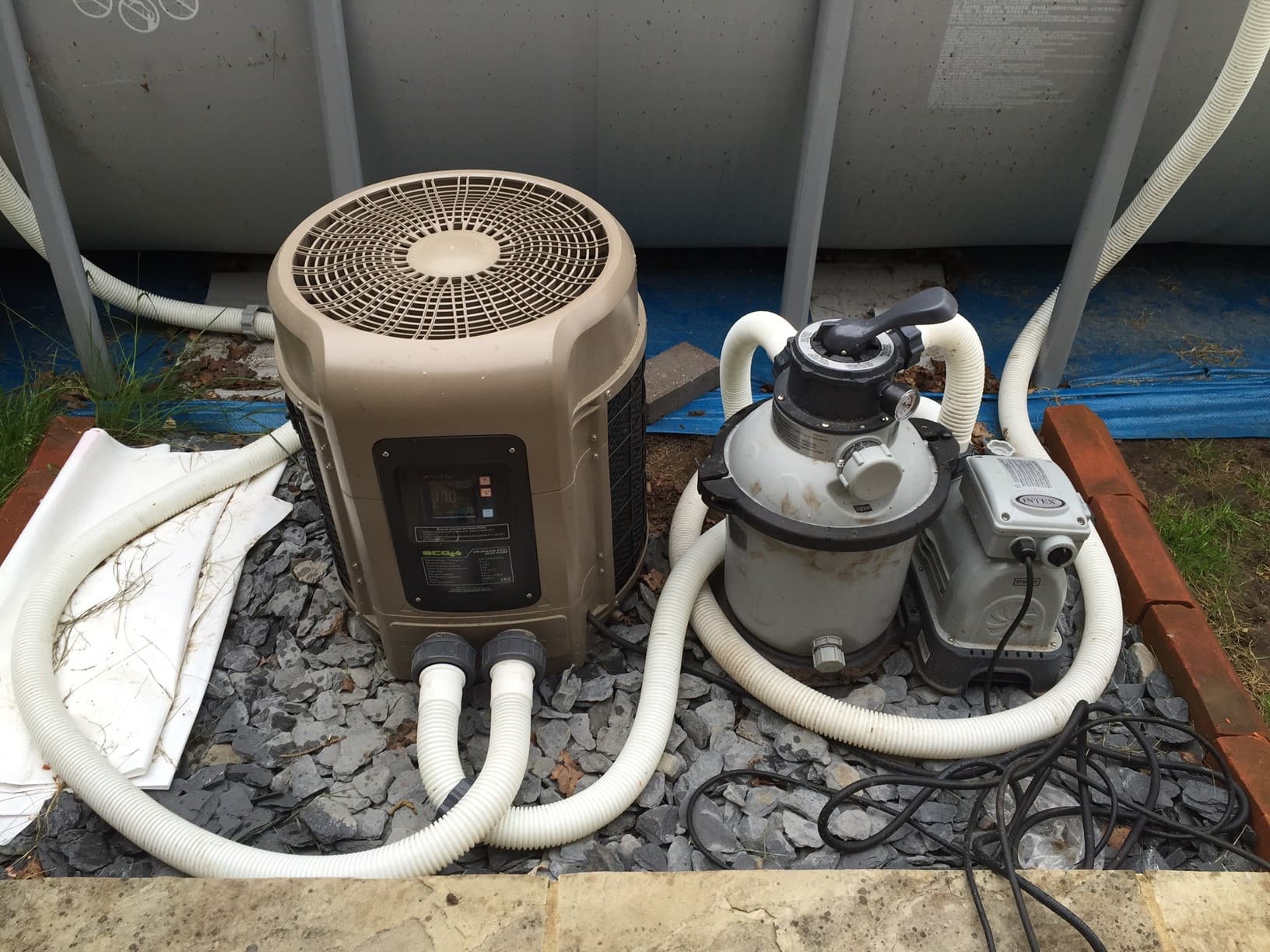

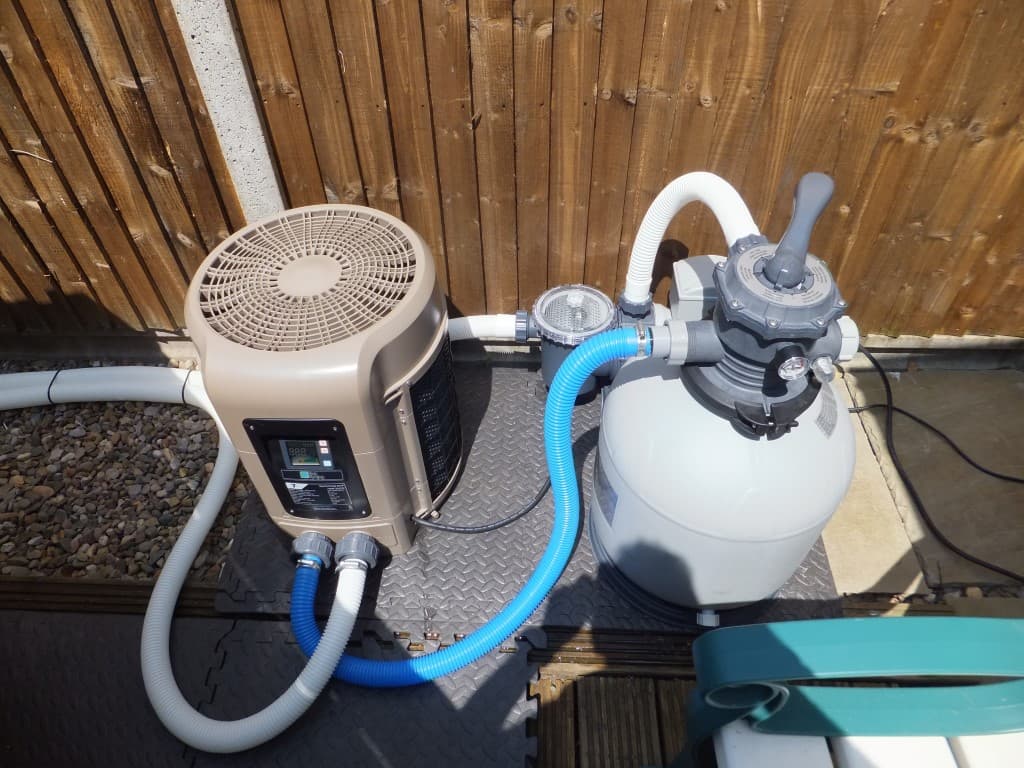

If you will be using a heat pump, you may also need to purchase an additional piece of hose to go from the heat pump back to the pool.

See “Optional Extras” tab below for a link to the pool hose

2. Features

• Suitable for above ground pools
• 6-way multi port valve
• 24 hour automatic timer
• Pressure gauge
• Comes in display box
• Complete with connectors and flexible pipe for Intex pool
• 9.2m³ per hour system flow rate
• 12m³ per hour pump flow rate
• 16″ (410mm) diameter tank
• 0.75hp pump
• Basket included on pump

3. Sizing & Models

We have four models available:-

• Model 1: 0.25hp pump and filter set with 4m3 per hr flow rate
• Model 2: 0.3hp pump and filter set with 6m3 per hr flow rate
• Model 3: 0.75hp pump and filter set  with 8m3 per hour flow rate
• Model 4: 0.95hp pump and filter set with 9.2m3 per hour flow rate

If you are using these with one of our heat pumps, please check that the flow rate exceeds the required flow rate for the heat pump

4. Specifications

Model 1 specification: (26644)
• 4m3 per hour
• 254mm diameter tank
• 0.25hp pump
• 8.5kg glass media  (not supplied)

Model 2 specification: (26646) (SF80220)
• 6m3 per hour
• 350mm diameter tank
• 0.3hp pump
• 16kg glass media or 23kg sand capacity (not supplied)

Model 3 specification: (26648) (SF70220 )
• 8m3 per hour
• 360mm diameter tank
• 0.6hp pump
• 25kg glass media (not supplied)

Model 4 specification: (26652) (SF60220)
• 9.2m3 per hour
• 410mm diameter tank
• 0.95hp pump
• 38kg glass media capacity (not supplied)

5. Optional Extras

25kg bag of glass filter media		See section 4 above, to see how many bags you will need as they vary for each model. Glass media has a life span of 5 years per bag, where as sand media only has 3 years.
Pool Hose		You may need to purchase an additional length of pool hose to connect from your heat pump to the pool We sell both 1.5″ pool hose and 1.25″ pool hose
Rigid Pipe Conversion Kit		A Rigid Pipe conversion kit is available if you want to use solid pipe with these units.
Intex/Bestway Hose Adaptor A		Intex/Bestway Hose Adaptor A : the 38mm male screw nut is ideal to fasten on to the Krystal clear pump filter set to add a section of either 32/38mm pool hose on the stepped hosetail as shown
Intex/Bestway Hose Adaptor B		Intex/Bestway Hose Adaptor B to connect 38mm hose (with a grey female nut) to 32mm pool hose or a pool with a 32mm outlet/spout.

6. Product Literature

Please click the links below to download pdf brochures

Intex Krystal Clear Model 1 (26644) User Manual
Intex Krystal Clear Models 2-4 (26646,26648, 26652) User Manual

7. Warranty & Support

The Krystal Clear Pump and Filter set come with a 1-year warranty on all components.

Please note that all Intex products warranties are supported by the UK Warranty care team at www.intexwetset.co.uk on the contact us page, or by calling John Adams direct on 0333 400 4548

If you do have a problem with your product then please contact John Adams on https://intexwetset.co.uk/contact-us/

8. Delivery

The range of Krystal Clear Pump and Filter sets are in stock in the UK and can be shipped to any UK address on a 1 – 3 day delivery service.

The price includes FREE UK delivery.

We can ship the Krystal Clear Pump and Filter set to any country. Please contact us for a shipping quote.

9. Installation

Please call us if you need assistance with this

Note: plunger valves not supplied, but available as an optional extra

10. Videos

https://youtu.be/-8wSgcHzTSE
